Electrical Connection	PVC-cable (grey, Ø 7.4 mm) [Shielded cable with integrated ventilation tube for atmospheric pressure reference]
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Permissible Temperatures	Medium: -10 ... 70 °C Storage: -25 ... 70 °C
Product Series	LMP 307
Seals	FKM
Brand	BD SENSORS
Accuracy	Standard for pN < 0.4 bar 0.5 % FSO
Application	Water / filtrated sewage: Drinking water systems, Ground water level measurement, Rain spillway basins, Pump and booster stations, Level measurement in containers, Water treatment plants, Water recycling. Fuel and oil: Fuel storage, Tank farms.
Cable Length (m)	20
Diaphragm Material	Stainless steel 1.4435 (316L)
Housing Material	Stainless steel 1.4404 (316L)
IP Rating	IP68
Output Signal	4 … 20 mA / 2-wire
Pressure (mH2O)	2.5
Response Time (ms)	≤ 10
Version	Standard

Level Sensors

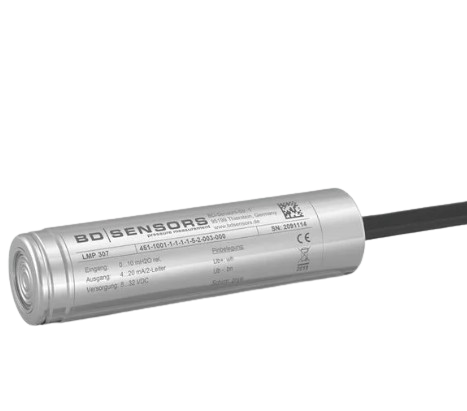

BD SENSORS LMP307 STAINLESS STEEL PROBELMP307 STAINLESS STEEL PROBE 4512500111151020000
