Product Code: RJ22V-C-D12

Slim Line design for space-saving applications
DPDT contact configuration for versatile use
12 VDC coil voltage suitable for various circuits
High durability: 200k electrical, 20M mech. ops.
Wide temp range: -40 to 70°C for harsh enviro.

Specifications

Coil Voltage DC (V)	12
Contacts	DPDT
No. of Poles	2
Operational Temperature Range (°C)	-40 to 70
Dimensions (mm)	29W x 25.5H x 12.7D
Contact Resistance (mO)	50
Weight (g)	17
Minimum Mechanical Life	20,000,000
Operating Humidity	5 to 85%
Minimum Electrical Life	200,000
Resistance to Vibrations	10 to 55Hz
Resistance to Shock (m/s²)	1000
Terminal Shape	PCB Terminal
Product Type	Slim General Purpose Relay
Brand	IDEC
Coil Voltage	12 VDC
Contact Configuration	DPDT
Contact Material	AgNi
Contact Resistance	50 MOhm
Electrical Life	200000 Operations
Humidity	5-85%
Mechanical Life	20000000 Operations
Model	Bifurcated Contacts
Number of Poles	2
Operating Time	15 ms
Operational Temperature	-40 to 70 deg C
Shock Resistance	1000 ms
Standards and Approvals	CE, CSA C22.2 14 1608322, EN61810-1, File LR35144, RoHS, UL File E55996, UL508, VDE
Terminal Type	PCB
Vibration Resistance	10-55 Hz
Weight	17 g

Description

The IDEC RJ22V-C-D12 is a bifurcated PCB relay designed for high-performance and reliability. This DPDT 12V DC relay offers a large switching capacity in a compact, rugged form factor. It is environmentally conscious, free from lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE. For assurance of quality and safety, it is UL recognized, CSA certified, and EN compliant. Ideal for various applications requiring robust power relays with significant switching capabilities.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

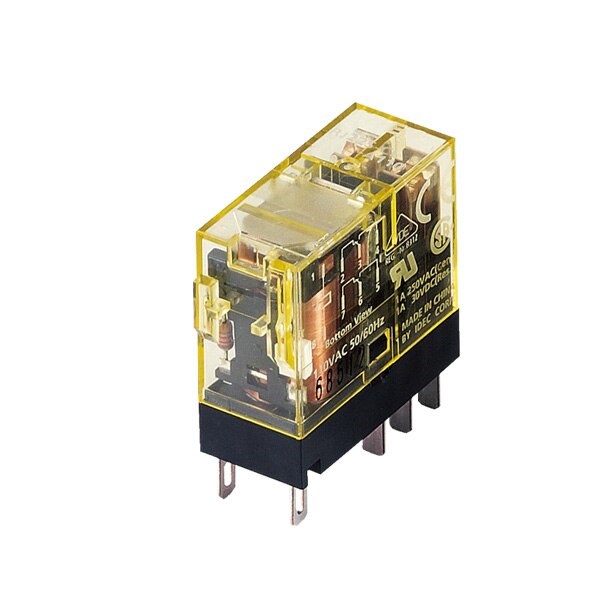

IDEC RJ22V-C-D12 Slim General Purpose Relay DPDT PCB Terminal
