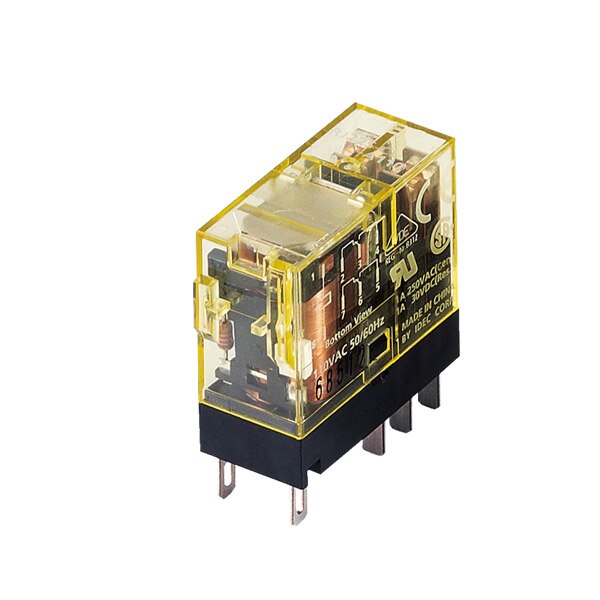

Product Code: RJ22S-CLR-A24

Slim Line design for space-saving installations
DPDT contact configuration with push-in terminals
Operates on 24 VAC with 15 ms response time
Durable with 1M electrical & 10M mechanical ops
Wide temp range: -40 to 70°C, IP40 protection

Specifications

Contacts	DPDT Bifurcated Contacts
Dimensions (mm)	31.1W x 33H x 12.7D
No. of Poles	2
Operational Temperature Range (°C)	-40 to 70
Coil Voltage AC (V)	24
Contact Resistance (mO)	50
Weight (g)	19
Minimum Mechanical Life	10,000,000
Operating Humidity	5 to 85%
Minimum Electrical Life	100,000
Resistance to Vibrations	10 to 55Hz
Resistance to Shock (m/s²)	1000
Terminal Shape	Plug in Terminal
Product Type	Slim General Purpose Relay
Brand	IDEC
Coil Voltage	24 VAC
Contact Configuration	DPDT
Contact Material	AgNi
Contact Resistance	50 MOhm
Degree of Protection	IP40
Electrical Life	1000000 Operations
Humidity	5-85%
Mechanical Life	10000000 Operations
Number of Poles	2
Operating Time	15 ms
Operational Temperature	-40 to 70 deg C
Shock Resistance	1000 ms
Standards and Approvals	CE, CSA C22.2 14 1608322, EN61810-1, File LR35144, RoHS, UL File E55996, UL508, VDE
Terminal Type	Push-In
Vibration Resistance	10-55 Hz
Weight	19 g

Description

The IDEC RJ22S-CLR-A24 is a bifurcated relay with an integrated non-polarized green LED indicator, designed for plug-in models. It features a unique light-guide structure to enhance visibility and a flux-tight structure for PCB models, ensuring reliability in various applications. This relay is recognized by UL, certified by CSA, approved by VDE, and carries the CE mark, denoting its compliance with international safety standards.
