Specifications

Dimensions (mm)	4W x 4H x 4D
Suitable For	Diameter round conductor 6mm
Weight (kg)	0.12
Weight (g)	115
Surface Protection	Hot-dip galvanized
Gross Weight (g)	116.6
Rod Diameter (mm)	6 - 10
Clamping Range (mm)	0.7-8

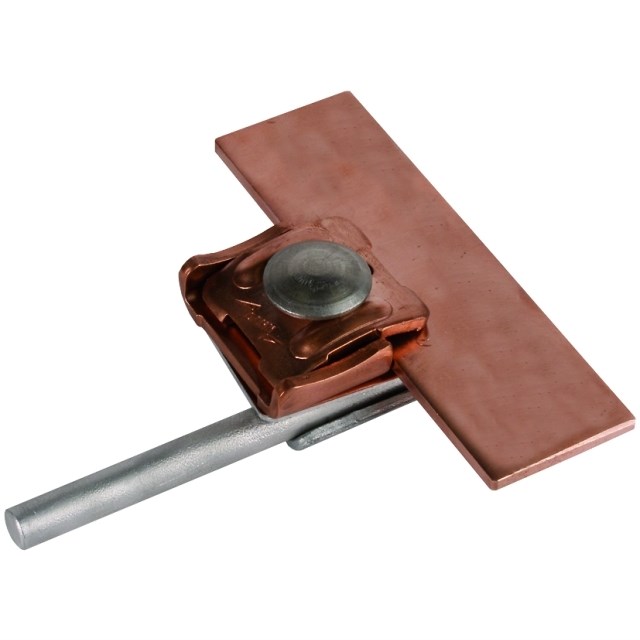

Product Type	Seam Clamp
Brand	DEHN
Clamping Range	0.7-8 mm
Connection Type	M8 x 35 mm Screw
Connector Type	Saddle Clamp
Depth	4 mm
Finish	Hot Dip Galvanized
Height	4 mm
Lid Screw Type	Flat round screw
Lightning Current Carrying Capability	50 kA
Material	Copper, Steel
Screw Size	M8
Standards and Approvals	EN 62561-1
Weight	115 g
Width	4 mm
