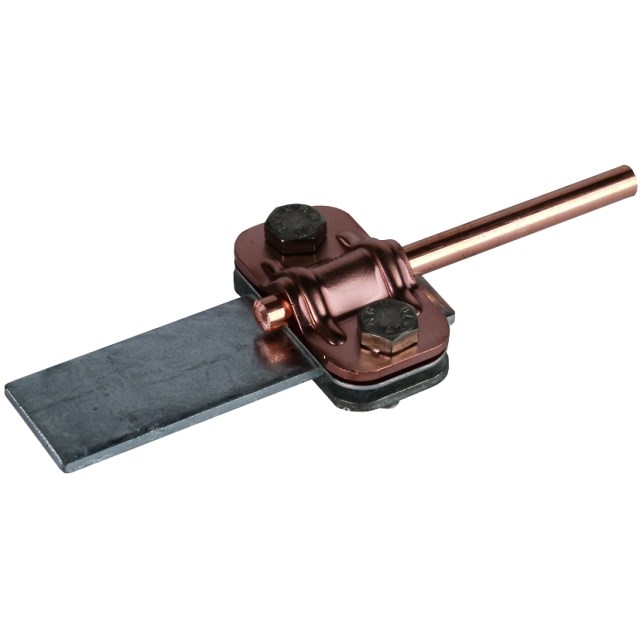

DEHN 460557 Bimetallic Disconnecting Clamp 8-10mm 30mm M8 x 20mm Screw Copper Steel

Product Code: 460557

  • M8 x 20 mm screw connection
  • Copper and steel construction
  • Clamping range: 8-10 mm, 30 mm
  • Lightning current: 100 kA capacity
  • Hot dip galvanized finish
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 58W X 30D
Thickness (mm) 3 / 1.5
Weight (kg) 0.08
Class (Lightning Current Carrying Capability) (kA) 100
Reference No. 460557
Surface Protection Hot-dip galvanized
Conductor Diameter (mm) 8 - 10
Clamping Range Rd/Rd (mm) 8 - 10 / 30
Distance Between Screws (mm) 40
Product Type Bimetallic Disconnecting Clamp
Brand DEHN
Clamping Range 8-10 mm, 30 mm
Connection Type M8 x 20 mm Screw
Depth 30 mm
Finish Hot Dip Galvanized
Lightning Current Carrying Capability 100 kA
Material Copper, Steel
Screw Size M8 x 20mm
Standards and Approvals EN 62561-1
Thickness 3 mm, 1.5 mm
Weight 80 g
Width 58 mm
