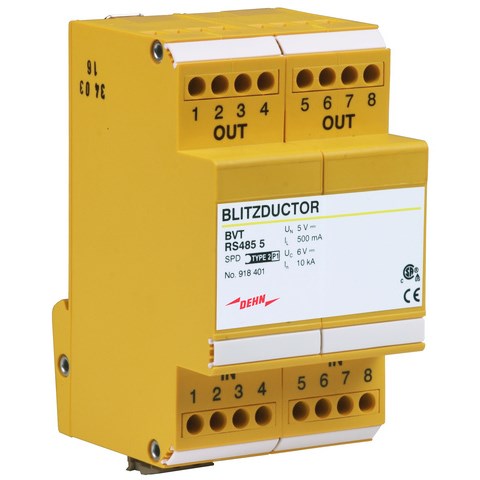

DEHN BVTRS4855 Surge Arrester 0.8kA 10kA 10kA 6VDC Screw 35mm DIN Rail IP20

Product Code: BVTRS4855

  • Surge protection for 6 VDC systems
  • Handles up to 10 kA per line
  • Easy screw connection on DIN Rail
  • Compact size: 54x90x65 mm, IP20 rated
  • Operates in -40 to 80°C range
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Lightning Impulse Current (10/350 µs) - Iimp (kA) 0.8
Maximum Continuous Operating Voltage MCOV AC (V) 4.2
Maximum Continuous Operating Voltage MCOV DC (V) 6
Suitable For Pluggable DIN Rail Mounted
Voltage Protection Level - Up (kV) 8.5
Weight (kg) 0.182
Nominal Load Current AC - I? (A) 0.5
Enclosure Material Thermoplastic, UL 94 V-0
Nominal Voltage (V) 5
Mounting Method DIN rail (top hat rail) 35 mm
Earth Fault Protection Separate conductor
Maximum Continuous Voltage DC (V) 6
Maximum Continuous Voltage AC (V) 4.2
Voltage Protection Level Earth 600
Limiting Frequency (Hz) 1.7
L-L Capacitance (nF) ≤ 5
Voltage Protection Level - Up (V) Line-Line for In C2: ≤ 20 Line-PG for In C2: ≤ 700 Line-Line at 1 kV/µs C3 ≤ 8.5 Line-PG at 1 kV/µs C3 ≤ 600
Nominal Voltage DC (V) 5
Nominal Discharge Current (8/20µs) - In (kA) 10
Operational Temperature Range (°C) -40 to 80
Reference No. 918401
SPD Type 2
Dimensions (mm) 54W x 90H x 65D
Product Type Surge Arrester
Brand DEHN
Capacitance <=5 nF (L-L)
Colour Yellow
Connection Type Screw
Cross Section 0.08-2.5 sq-mm Solid, 0.08-2.5 sq-mm Flexible
Degree of Protection IP20
Depth 65 mm
Height 90 mm
Lightning Impulse Current 0.8 kA
Material Thermoplastic
Mounting Type 35 mm DIN Rail
Operational Temperature -40 to 80 deg C
Rated Current 10 kA (Per Line), 10 kA (Total)
Rated Voltage 6 VDC
SPD Class Type 2
Standards and Approvals IEC 61643-21, EN 61643-21
Tightening Torque 0.5 N-m
Voltage Protection Level <=20V (L-L) for In C2), <=700V (Line-PG) for In C2), <=8.5V (L-L) at 1 kV/µs C3), <=600V (Line-PG) at 1 kV/µs C3)
Weight 182 g
Width 54 mm
