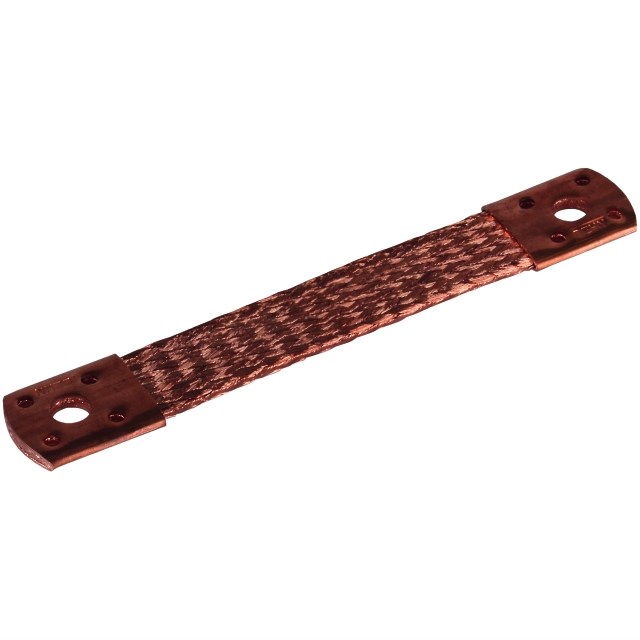

DEHN 377007 Bridging Braid Blind Rivets Drilling Screws 180mm L 3mm W 18mm H Copper

Product Code: 377007

  • Copper material for durability
  • Suitable with earthing rods
  • Handles lightning currents up to 100 kA
  • Meets EN 62561-1 standards
  • Compact size: 180 mm length
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cross Section (mm²) 50
Dimensions (mm) 3W x 18H x 0D
Length (mm) 180
Suitable For Earthing
Weight (kg) 0.11
Class (Lightning Current Carrying Capability) (kA) 100
Fixing Hole Ø (mm) [8x] Ø5.2 / [2x] Ø10.5
Type Equipotential Bonding
Surface Protection Untreated
Product Type Bridging Braid
Brand DEHN
Connection Type Blind Rivets, Drilling Screws
Connector Type blind rivets or drilling screws
Cross Section 50 sq-mm
Finish Untreated
Height 18 mm
Length 180 mm
Lightning Current Carrying Capability 100 kA
Material Copper
Standards and Approvals EN 62561-1
Suitable For Use With Earthing Rods
Weight 107 g
Width 3 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
