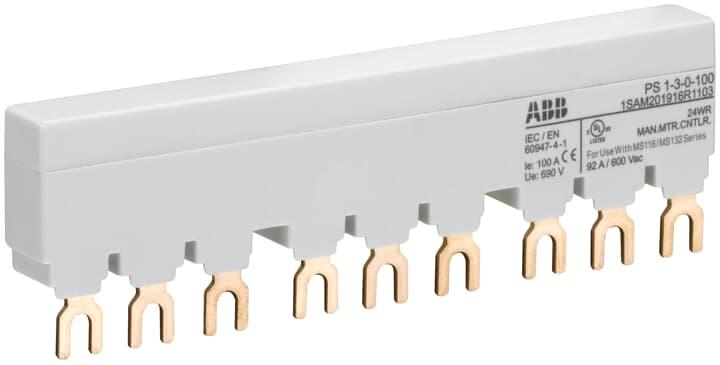

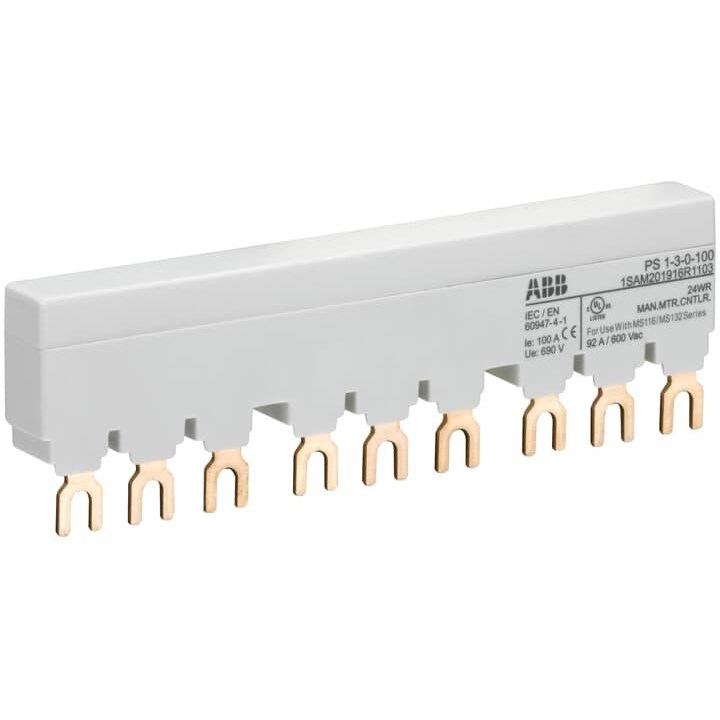

ABB PS1-3-0-100 Busbar 9-P 100A 690/250VAC/DC IP20 For: MS116 MS132 and MO132 Motor Starters

Product Code: PS1-3-0-100

  • Supports up to 100 A current
  • Compact size: 131.5 mm x 38.8 mm x 13 mm
  • Rated voltage: 690/250 VAC/VDC
  • Compatible with MS116, MS132, MO132 starters
  • High short circuit rating of 100 kA
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Length (mm) 131.5
Maximum Operational Voltage AC (V) 690
Module Width (mm) 14
No. of Mountable Devices 3
No. of Poles 9
No. of Phases 3
Rated Conditional Short-Circuit Current - Inc (kA) 100
Rated Impulse Withstand Voltage (kV) 6
Rated Operational Current (A) 100
Rated Operational Voltage DC (V) 250
Rated Operational Voltage AC (V) 690
Rated Uninterrupted Current - Iu (A) 100
Suitable For 3 Devices
Width in Number of Modular Spacings 7.51
Rated Short-Time Withstand Current - Icw (kA) 100
Product Type Busbar
Brand ABB
Ambient Temperature -25 to 70 deg C
Colour Grey
Connection Type Fork
Degree of Pollution IP3
Degree of Protection IP20
Depth 13 mm
Height 38.8 mm
Module Width 14 mm
Number of Lateral Auxiliary Contacts 0
Number of Mountable Devices 3
Number of Poles 9
Phase 3
Rated Current 100 A
Rated Impulse Withstand Voltage 6 kV
Rated Short Circuit Current 100 kA
Rated Voltage 690/250 VAC/VDC
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
Suitable For Use With MS116, MS132 and MO132 Motor Starters
Weight 0.084 kg
Width 131.5 mm

Description

PS1-3-0-100 3-phase busbars ensure a quick and safe connection of 3 MS132 or MS116 manual motor starters without lateral auxiliary contacts and are therefore a cost effective solution. The rated current is 100 A.
