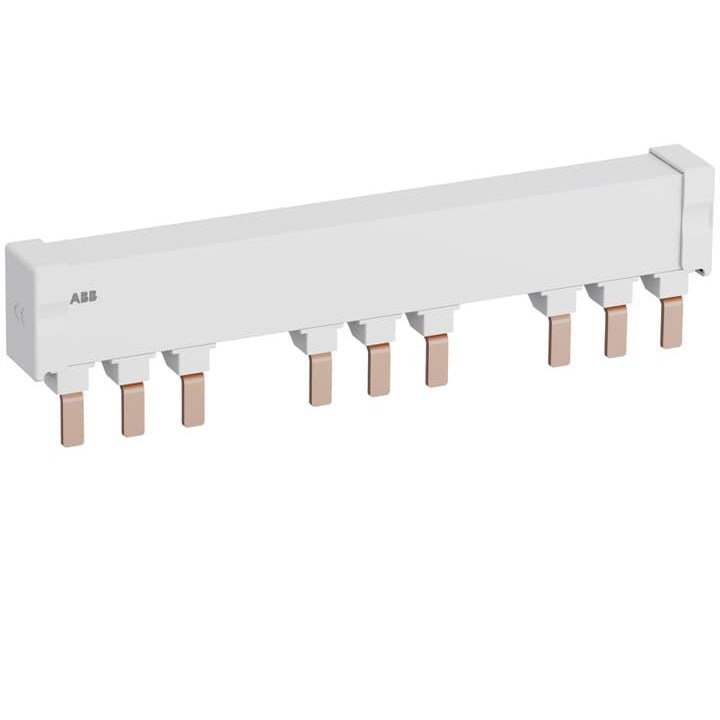

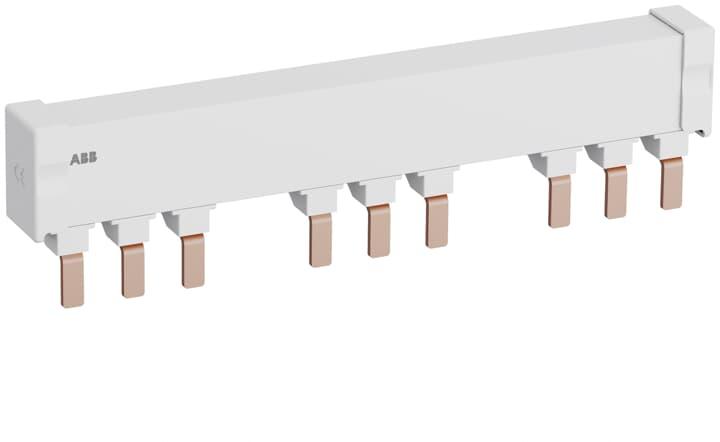

ABB PS2-3-2-125 Busbar 9-P 125A 690VAC IP20 For: MS165 MO165 Motor Starters

Product Code: PS2-3-2-125

  • Rated for 125 A current capacity
  • Dimensions: 204x53x22 mm
  • Complies with IEC/EN 60947-4-1 standards
  • Withstands impulse voltage up to 8 kV
  • Compatible with MS165, MO165 starters
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Length (mm) 204
Maximum Operational Voltage AC (V) 690
Module Width (mm) 18
No. of Mountable Devices 3
No. of Lateral Auxiliary Contacts 2
No. of Poles 9
No. of Phases 3
Rated Conditional Short-Circuit Current - Inc (kA) 100
Rated Impulse Withstand Voltage (kV) 8
Rated Operational Current (A) 125
Rated Operational Voltage AC (V) 690
Rated Uninterrupted Current - Iu (A) 125
Suitable For 3 Devices
Width in Number of Modular Spacings 11.6
Rated Short-Time Withstand Current - Icw (kA) 100
Product Type Busbar
Brand ABB
Ambient Temperature -25 to 40 deg C
Colour Grey
Connection Type Pin
Degree of Protection IP20
Depth 22 mm
Height 53 mm
Module Width 18 mm
Number of Lateral Auxiliary Contacts 2
Number of Mountable Devices 3
Number of Poles 9
Phase 3
Rated Current 125 A
Rated Impulse Withstand Voltage 8 kV
Rated Short Circuit Current 100 kA
Rated Voltage 690 VAC
Standards and Approvals IEC/EN 60947-4-1
Suitable For Use With MS165, MO165 Motor Starters
Weight 0.197 kg
Width 204 mm

Description

PS2-3-2-125 3-phase busbars ensure a quick and safe connection of 3 MS165 manual motor starters with 2 lateral auxiliary contacts and are therefore a cost effective solution. The rated current is 125 A.
