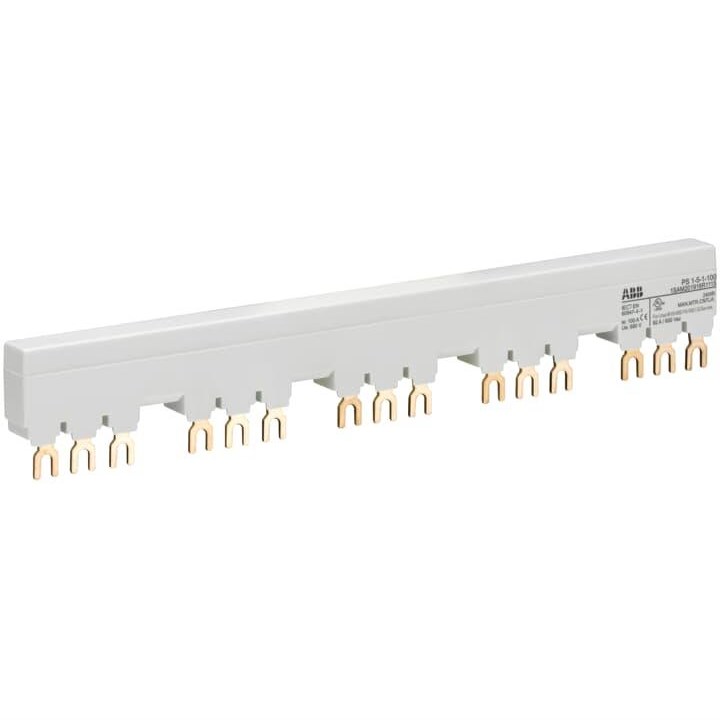

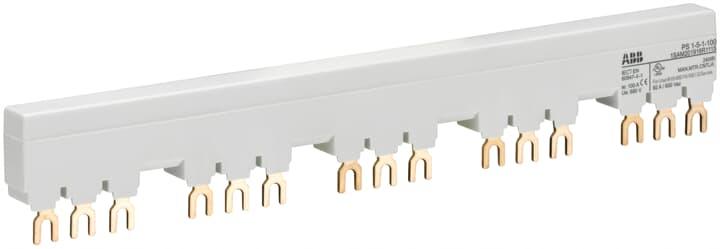

ABB PS1-5-1-100 Busbar 3-P 100A 690/250VAC/DC IP20 For: MS116 MS132 and MO132 Motor Starters

Product Code: PS1-5-1-100

  • Rated for 100 A current handling
  • Compact size: 257.5x38.8x13 mm
  • Supports up to 690/250 VAC/VDC
  • Compatible with MS116, MS132, MO132 starters
  • Meets IEC/EN & UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Length (mm) 257.5
Maximum Operational Voltage AC (V) 690
Module Width (mm) 14
No. of Mountable Devices 5
No. of Lateral Auxiliary Contacts 1
No. of Poles 3
No. of Phases 3
Rated Conditional Short-Circuit Current - Inc (kA) 100
Rated Impulse Withstand Voltage (kV) 6
Rated Operational Current (A) 100
Rated Operational Voltage DC (V) 250
Rated Operational Voltage AC (V) 690
Rated Uninterrupted Current - Iu (A) 100
Suitable For 5 Devices
Width in Number of Modular Spacings 14.7
Rated Short-Time Withstand Current - Icw (kA) 100
Product Type Busbar
Brand ABB
Ambient Temperature -25 to 70 deg C
Colour Grey
Connection Type Fork
Degree of Pollution IP3
Degree of Protection IP20
Depth 13 mm
Height 38.8 mm
Module Width 14 mm
Number of Lateral Auxiliary Contacts 1
Number of Mountable Devices 5
Number of Poles 3
Phase 3
Rated Current 100 A
Rated Impulse Withstand Voltage 6 kV
Rated Short Circuit Current 100 kA
Rated Voltage 690/250 VAC/VDC
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
Suitable For Use With MS116, MS132 and MO132 Motor Starters
Weight 0.172 kg
Width 257.5 mm

Description

PS1-5-1-100 3-phase busbars ensure a quick and safe connection of 5 MS132 or MS116 manual motor starters with 1 lateral auxiliary contacts and are therefore a cost effective solution. The rated current is 100 A.
