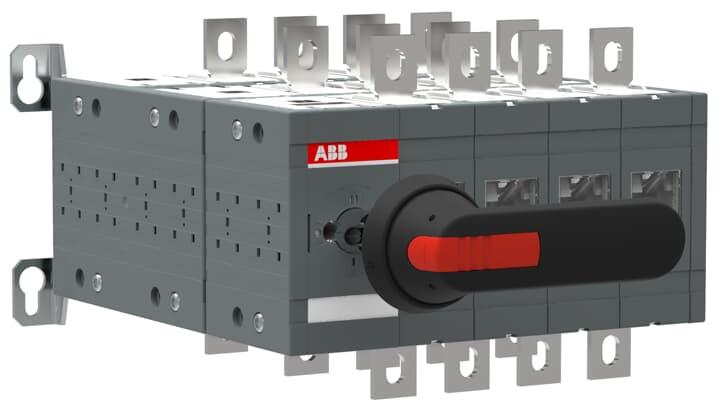

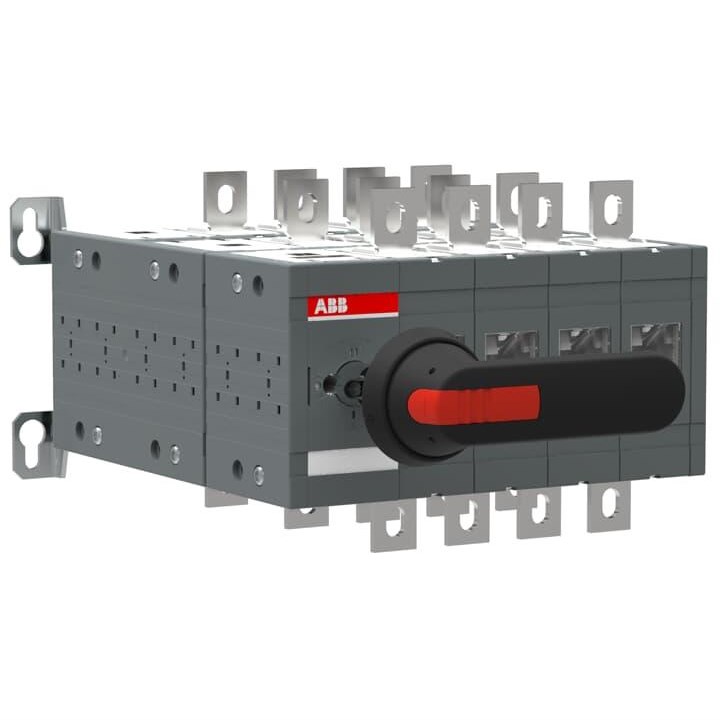

ABB OT400E04YP BY-PASS SWITCH OT400E04YP

Product Code: OT400E04YP

Including a black plastic IP65 I-0-II pistol type handle and a handle extension for enabling smooth manual operation, shaft and bolt set for the cable connection. The handle extension is snap-on mounted on the standard handle for manual operation. The handle extension shall be removed when padlocking the standard handle. Handle padlockable in the 0-position, door interlock in the I- and II-positions and when padlocked.

Technical Specifications

Brand ABB
Control Element Colour Black
Conventional Free-Air Thermal Current - Ith (A) 400
Degree of Protection IP20
Dimensions (mm) 280W x 185H x 306D
Handle Type Pistol
Included Handle, Shaft
Interlockable Yes
Maximum Operational Voltage AC (V) 1000
Mode of Operation Front
Mounting Type Front Mount 4-hole
NEMA Degree of Protection 1
No. of Poles 4
No. of Switches 1
Padlockable Padlockable in O-position
Pollution Degree 3
Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out
Power Loss (W) 10
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage (V) 1000
Rated Operational Current AC-21A 415V (A) 400
Rated Operational Current AC-22A 400-415V (A) 400
Rated Operational Current AC-23A 380-415V (A) 400
Rated Operational Current AC-23A 400-415 V (A) 400
Rated Operational Power AC-23A 380-415V (kW) 220
Rated Operational Power AC-23A 400-415 V (kW) 220
Rated Operational Voltage (V) 1000
Rated Operational Voltage AC (V) 400 - 415
Rated Short-Time Withstand Current - Icw (kA) 15
Suitable For Distribution Board Installation
Terminal Type Bolt
Transition Type Open
Type Main Switch
Weight (kg) 13.6
