Specifications

Dimensions (mm)	70W X 110H X 108D
Reference No.	1SBL411022R8800
Rated Operational Voltage (V)	690
Rated Control Circuit Voltage (V)	50 Hz/ 230-240V, 60 Hz/ 240- 260V
No. of Main Contacts	3 X NO

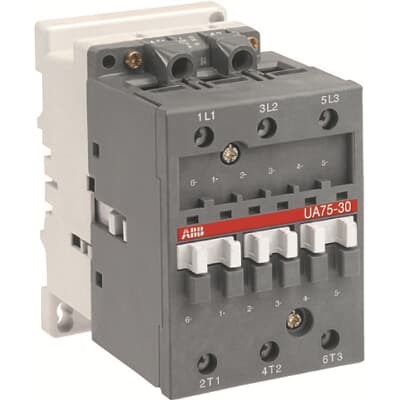

Product Type	Contactor
Brand	ABB
Contact Configuration	3NC+0NO
Control Circuit Connecting Capacity	Flexible with Cable End 0.75-2.5 sq-mm, Rigid Cable 1-4 sq-mm
Degree of Pollution	IP3
Degree of Protection	IP10, IP20
Depth	108 mm
Height	110 mm
Main Circuit Connecting Capacity	Flexible with Cable End 6-16 sq-mm, Rigid Cable 6-25 sq-mm
Mounting Type	DIN
Number of Poles	3
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Rated Voltage	220-230 VAC, 230-240 V
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1
Terminal Type	Screw
Width	70 mm
