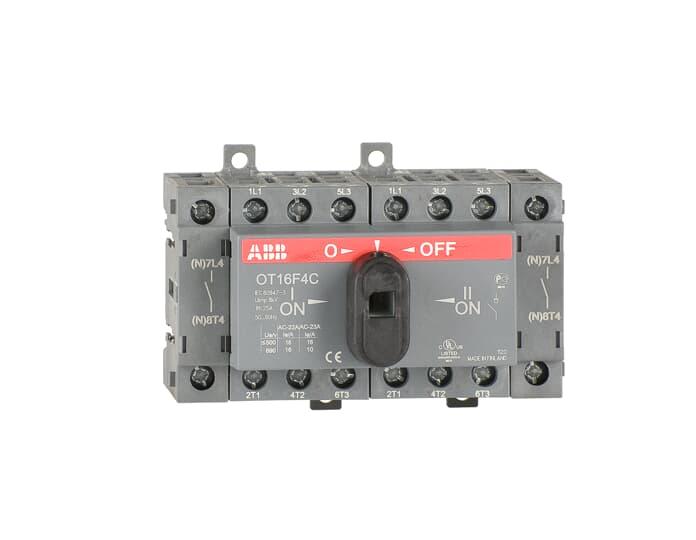

<p>This manual switch is a robust and reliable choice for industrial and commercial applications, particularly suited for distribution board installations. With a rated current of 16 A and a rated power of 7.5 kW, it offers dependable performance in electrical systems requiring consistent operation. The device measures 96 mm in width, with both height and depth at 68 mm, making it compact yet effective for various installation scenarios.</p><p>The switch complies with several standards including UL 98, IEC60947-3, RoHS, REACH, CE, and WEEE. These certifications ensure that the product meets rigorous safety and environmental requirements. Weighing just 0.31 kg, this lightweight component doesn&#39;t compromise on durability or functionality.</p><p>Designed to withstand challenging conditions, the switch features a rated impulse withstand voltage of 8 kV and can handle a short-time withstand current of up to 0.5 kA. It operates at a rated voltage of up to 415 VAC with an insulation rating of 750 V—suitable for demanding electrical environments.</p><p>With four poles and an IP20 degree of protection alongside IP3 pollution degree classification, this device balances accessibility with safety against solid foreign objects larger than 12 mm in diameter like fingers or similar objects.</p><p>Installation is straightforward thanks to its front mount design using four holes which ensures secure attachment in your setup. The control element comes equipped with a black knob handle providing an intuitive interface marked by I-O-II indicators for clear operational status identification.</p><p>The terminal type is screw clamp accommodating cable cross-sections ranging from 0.75 to 10 sq-mm ensuring versatility across different wiring needs while maintaining secure connections under tightening torque specifications of up to 0.8 N-m.</p><p>For enhanced flexibility during installation or maintenance procedures the line terminals are designed for top-in-bottom-out or bottom-in-top-out configurations allowing adaptability depending on your system&#39;s layout requirements.</p><p>Additionally interlockable features enhance operational safety preventing accidental switching thereby reducing risks associated with unintended operations especially critical in high-stakes environments where reliability is paramount.</p><p>With minimal power loss recorded at just 0.3 W this switch contributes towards energy efficiency initiatives within your facility by reducing unnecessary consumption without sacrificing performance levels expected from such equipment types classified under NEMA Rating: NEMA1 suitable predominantly indoors away from harsh outdoor elements but still offering basic protection against dust ingress</p><p>Overall this manual switch stands out as an efficient solution meeting technical demands while adhering strictly not only regulatory compliance but also practical usability considerations essential when integrating into existing infrastructure setups</p>
