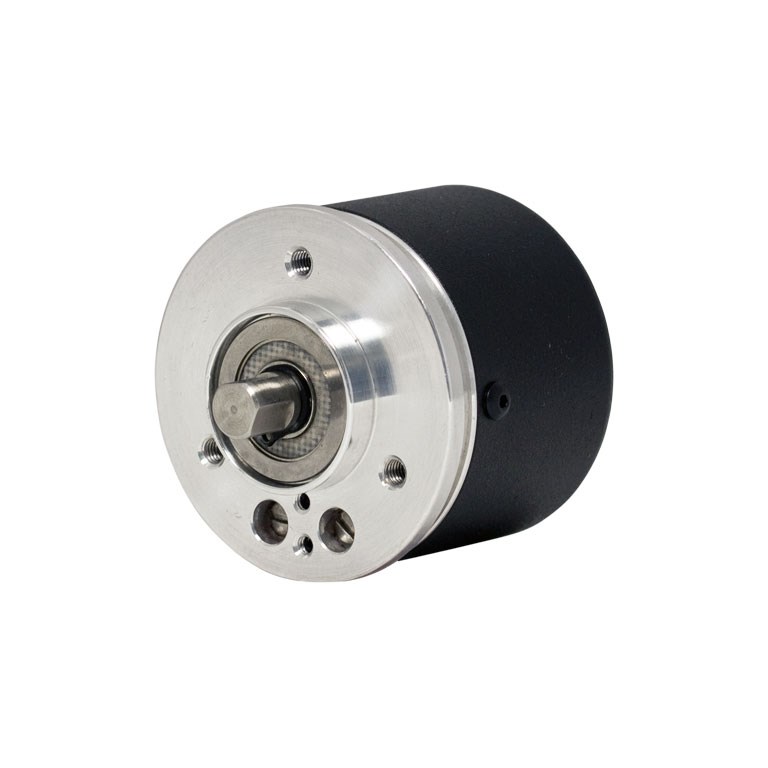

CL Encoder 755RG261RG3000RHVG2ST High Precision Square Flange Mount 755RG 4.75-28VDC 38mm Dia Hole IP50

Product Code: 755RG261RG3000RHVG2ST

  • Encoder sensor with line driver output
  • Flange mounting for secure installation
  • Operates at 4.75-28 VDC for versatility
  • IP50 protection against dust and debris
  • Delivers 3000 pulses per revolution
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Channels Quad + Z Marker A+B+Z
Diameter (mm) 38
Operational Temperature Range (°C) 0 to +85
Rated Operational Voltage DC (V) 4.75 - 28
Shaft Dimensions (mm) 6mm x 10mm - 1 Flat
Product Type High Precision Square Flange Mount
Brand CL ENCODER
Series 755RG
Connector Type 2M Cable
Degree of Protection IP50
Mounting Type Flange
Number of Channels 2
Operational Temperature 0 to 85 deg C
Output Type Line Driver
Pulses Per Revolution 3000 PPR
Rated Voltage 4.75-28 VDC
Shaft Size 6 mm x 10 mm
