Specifications

Bore Hole Diameter (mm)	10
Channels	Quad + Z Marker A+B+Z
Operational Temperature Range (°C)	0 to +70
Rated Operational Voltage DC (V)	4.75 - 24

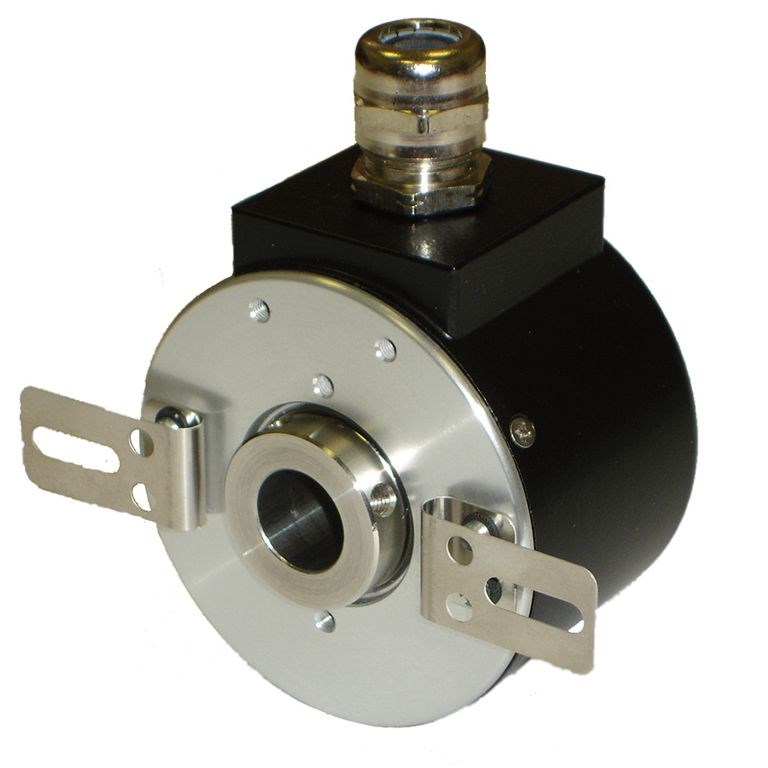

Product Type	COMMUTATED THRU-BORE/BLIND-BORE ENCODER
Brand	CL ENCODER
Series	760
Connector Type	2M Cable
Degree of Protection	IP64
Humidity	98%
Mounting Type	89-150 mm PCD Tether Arm Kit
Number of Channels	2
Operational Temperature	0 to 70 deg C
Output Type	Open Collector
Pulses Per Revolution	3000 PPR
Rated Current	100 mA
Rated Voltage	4.75-24 VDC
Shaft Speed	6000 RPM
Shock Resistance	50 g/11 ms
Vibration Resistance	58-500 Hz
