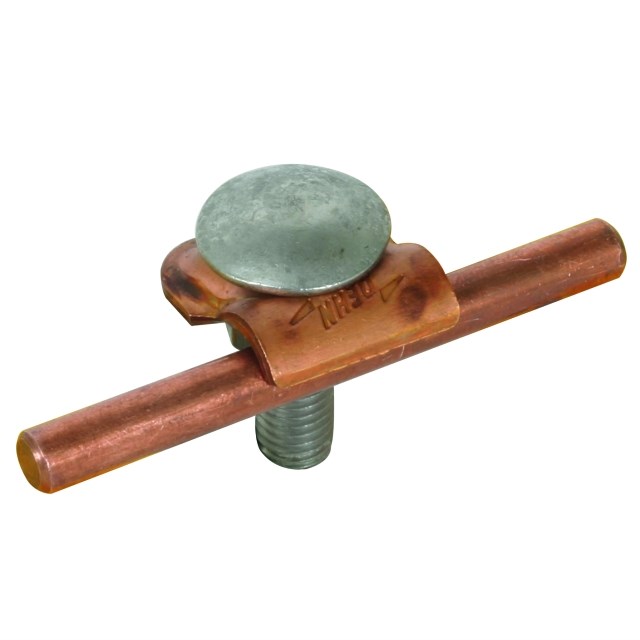

DEHN 390157 Clamping Piece W/Truss Head Screw 6-10mm M10 x 35mm Screw Copper

Product Code: 390157

  • Copper material ensures durability.
  • Compatible with M10 x 35 mm screws.
  • Clamping range of 6-10 mm.
  • Handles lightning currents up to 100 kA.
  • Complies with EN 62561-1 standards.
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 3W x 4H x 3D
Thickness (mm) 2.5
Weight (kg) 0.05
Surface Protection Untreated
Conductor Diameter (mm) 6
Lightning current load-bearing capacity (10/350µs) 100 / 50
Clamping Range (mm) 6 - 10
Product Type Clamping Piece With Truss Head Screw
Brand DEHN
Clamping Range 6-10 mm
Connection Type M10 x 35 mm Screw
Connector Type Clamp connector
Depth 3 mm
Finish Untreated
Height 4 mm
Lid Screw Type Flat round screw
Lightning Current Carrying Capability 50 kA, 100 kA
Material Copper
Screw Size M10 x 35
Standards and Approvals EN 62561-1
Thickness 2.5 mm
Weight 53 g
Width 3 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
