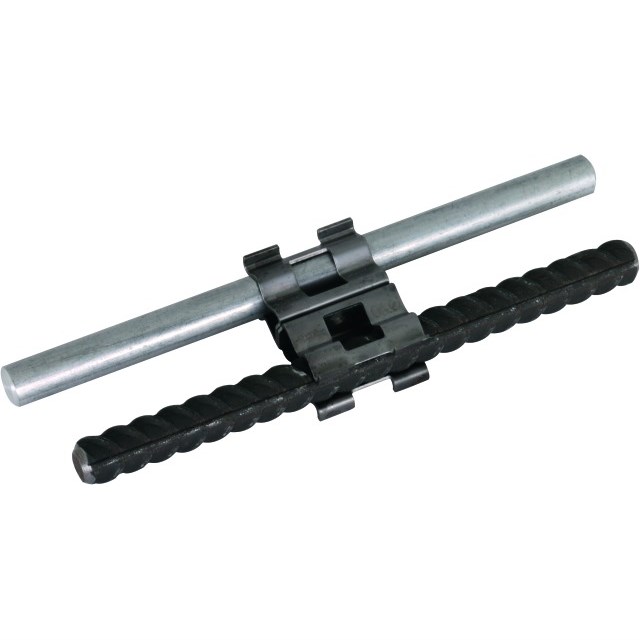

DEHN 308131 Rebar Clamp 8-9mm 10mm Parallel Connector Steel

Product Code: 308131

  • Parallel connector for secure connections
  • Complies with EN 62561-1 standards
  • Handles lightning currents up to 50 kA
  • Clamping range: 8-10 mm for versatility
  • Lightweight steel construction at 18 g
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 3W x 4H x 1D
Thickness (mm) 1
Suitable For Earthing
Weight (kg) 0.018
Surface Protection Untreated
Conductor Diameter (mm) 8
Lightning current load-bearing capacity (10/350µs) 50
Type Equipotential Bonding
Clamping Range (mm) 8 - 10
Product Type Rebar Clamp
Brand DEHN
Clamping Range 8-9 mm, 10 mm
Connection Type Parallel Connector
Connector Type Parallel connector
Depth 13 mm
Finish Untreated
Height 39 mm
Lid Screw Type Screwless
Lightning Current Carrying Capability 50 kA
Material Steel
Rated Short Circuit Current 2.7 kA
Standards and Approvals EN 62561-1
Thickness 1 mm
Weight 18 g
Width 30 mm
