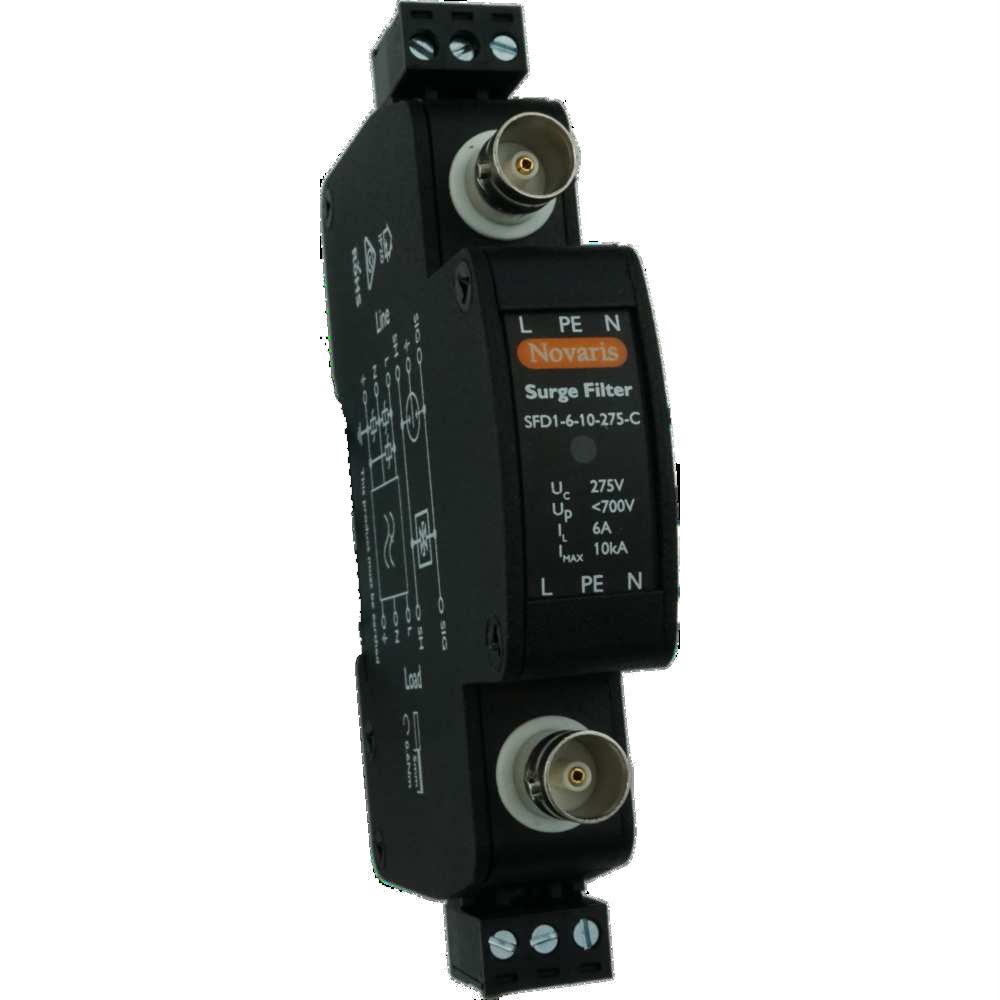

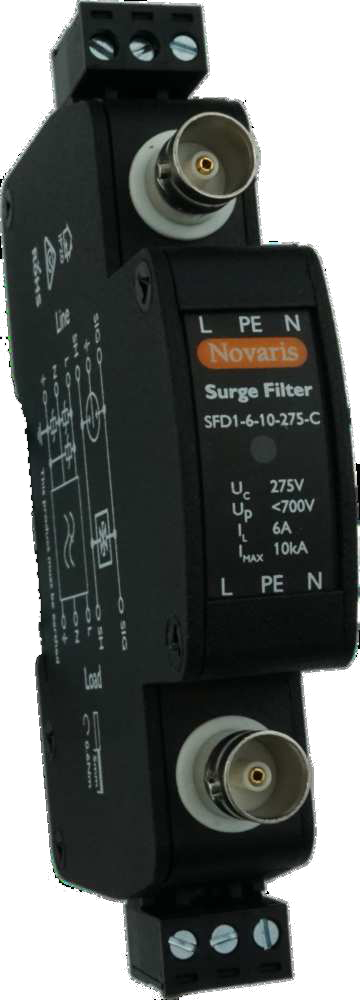

Novaris SFD1-6-10-275-C Combined Power and Signal Protector 1 PH 10kA Power 20kA Signal 230VAC 50/60Hz TS35 116mm H IP20

Product Code: SFD1-6-10-275-C

  • Surge protection for 230 VAC systems
  • Handles 10 kA power, 20 kA signal
  • Compact size: 18x116x70 mm
  • IP20 protection rating
  • Easy TS35 DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 18W x 69H x 115D
Weight (g) 160
Product Type Combined Power and Signal Protector
Brand NOVARIS
Connection Type Series
Degree of Protection IP20
Depth 70 mm
Height 116 mm
Humidity 5-95%
Modes of Protection L-N, L-PE, N-PE
Mounting Type TS35 DIN Rail
Operational Temperature -40 to 85 deg C
Phase 1
Rated Current 10 kA Power, 20 kA Signal
Rated Frequency 50/60 Hz
Rated Short Circuit Current 6 A
Rated Voltage 230 VAC
Tightening Torque 0.5 N-m
Voltage Protection Level <750 V
Weight 200 g
Width 18 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
