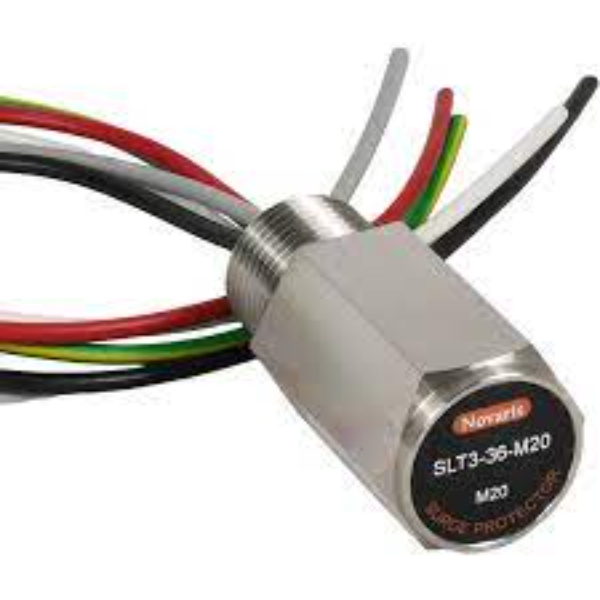

When it comes to safeguarding signal lines in industrial and commercial settings, reliability and performance are paramount. This Signal Line Protector is engineered to meet the rigorous demands of such environments, offering robust protection while adhering to a host of international standards.
Designed for versatility, this protector accommodates both transverse and common modes with a rated voltage of 350 V for power lines and 36 V for signals. It boasts a formidable current handling capacity with 5 kA per line and an impressive 10 kA in common mode scenarios. Such specifications ensure that your systems remain shielded even under severe conditions.
The device's IP67 rating signifies its resilience against dust ingress and water immersion up to one meter deep, making it ideal for outdoor or harsh indoor environments. Its compact dimensions—53 mm in length, 24 mm in width, and 27 mm in height—allow seamless integration into existing setups without demanding significant space.
Installation is straightforward thanks to its M20 x 1.5 thread mounting type which ensures secure attachment while maintaining flexibility across various applications. The shunt connection type further enhances its adaptability by simplifying electrical connections.
Constructed from durable stainless steel, this protector not only withstands physical wear but also endures extreme temperatures ranging from -40°C to 85°C. Withstanding humidity levels between 5% and 95%, it remains reliable across diverse climatic conditions.
Adhering to standards like IEC 61643-21:2012, AS/NZS 1768:2007, UL1449 (3rd Edition), UL497B, and ITU-T K.44:2012 assures users of its compliance with global benchmarks for safety and performance.
Weighing just 165 g yet packed with features such as a response time under five nanoseconds (<5 ns) and capacitance at seven nanofarads (7 nF), this unit offers swift reaction times crucial during transient surges while maintaining system integrity through efficient energy dissipation.
Additionally, the Voltage Protection Level stands at a safe threshold of 75V for signals ensuring sensitive equipment remains unharmed during unexpected spikes or disturbances on the line.
In sum; whether you're upgrading existing infrastructure or setting up new installations requiring dependable surge protection solutions tailored specifically towards complex electrical systems—this Signal Line Protector delivers comprehensive coverage backed by stringent approvals ensuring peace-of-mind operation throughout its lifecycle.
