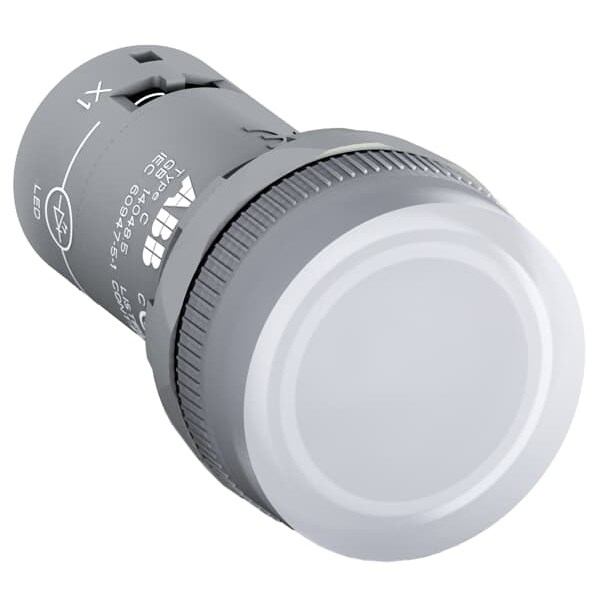

ABB CL2-623C Compact Pilot Light Clear 230VAC

Product Code: CL2-623C

  • Operates at 24 VAC/VDC
  • Available in five colours: Red, Yellow, Blue, Green, White
  • Temperature range from -25 to 55°C
  • Protection ratings: IP23, IP54, IP65
  • Complies with CE and UL508 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 ... +70 (Operation)
Rated Frequency (Hz) 50 / 60
Rated Operational Voltage AC (V) 230
Tightening Torque (Nm) 0.9
Weight (kg) 0.18 (Net)
Product Type Compact Pilot Light
Brand ABB
Series LD6A
Actuator Type Pilot light head
Colour Red, Yellow, Blue, Green, White
Connection Type Screw Clamp
Degree of Pollution IP3
Degree of Protection IP23, IP54, IP65
Housing Colour Dark Grey
Housing Material ABS
Humidity 45-85%
Illumination Illuminated
Insulation Resistance 100 MOhm
Lamp Type Integrated LED
Mounting Type Direct
Number of Tiers 5
Operational Temperature -25 to 55 deg C
Rated Insulation Voltage 60 V
Rated Voltage 24 VAC/VDC
Shock Resistance 147 ms
Standards and Approvals CE, cRUus, CSA C22.2 #14, EN60947-5-1, IEC60947-5-1, UL508
Terminal Type Screw Terminal
Vibration Resistance 10-55 Hz
Weight 435 g

Description

The CL2-623C Pilot Light is: Compact - Pilot Light - Pilot light head - Clear - Illuminated - 230, 230V AC. This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost. The compact range has a high level of dust and water resistance.
