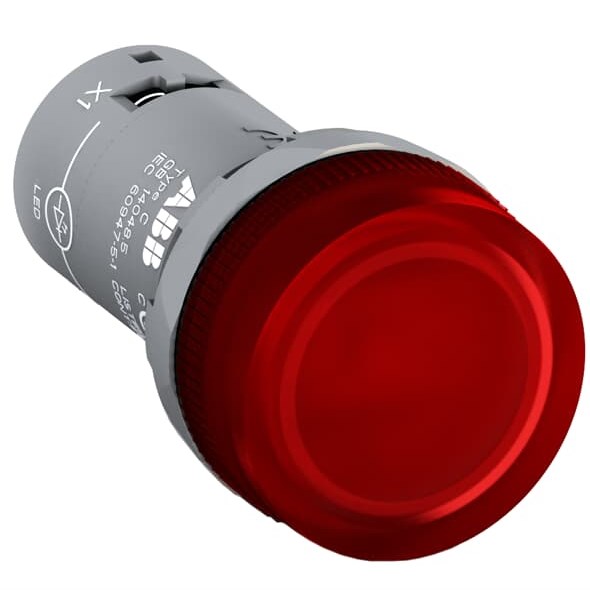

Product Code: CL2-623R

Available in red, yellow, blue, green, and white
Operates on 24 VAC/VDC power supply
Suitable for temperatures from -25 to 55°C
High protection levels: IP23, IP54, IP65
Certified by CE, cRUus, CSA C22.2 #14 standards

Specifications

Ambient Temperature Range (°C)	-25 ... +70 (Operation)
Rated Frequency (Hz)	50 / 60
Rated Operational Voltage AC (V)	230
Tightening Torque (Nm)	0.9
Weight (kg)	0.18 (Net)
Product Type	Compact Pilot Light
Brand	ABB
Series	LD6A
Actuator Type	Pilot light head
Colour	Red, Yellow, Blue, Green, White
Connection Type	Screw Clamp
Degree of Pollution	IP3
Degree of Protection	IP23, IP54, IP65
Housing Colour	Dark Grey
Housing Material	ABS
Humidity	45-85%
Illumination	Illuminated
Insulation Resistance	100 MOhm
Lamp Type	Integrated LED
Mounting Type	Pole
Number of Tiers	5
Operational Temperature	-25 to 55 deg C
Rated Insulation Voltage	60 V
Rated Voltage	24 VAC/VDC
Shock Resistance	147 ms
Standards and Approvals	CE, cRUus, CSA C22.2 #14, EN60947-5-1, IEC60947-5-1, UL508
Terminal Type	Screw Terminal
Vibration Resistance	10-55 Hz
Weight	805 g

Description

The CL2-623R Pilot Light is: Compact - Pilot Light - Pilot light head - Red - Illuminated - 230, 230V AC. This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost. The compact range has a high level of dust and water resistance.
