Lid Screw Type	U-Bolt
Material	Steel
Clamping Range (mm)	16 - 48 / 6 - 10
Conductor Diameter (mm)	16
Lightning current load-bearing capacity (10/350µs)	50
Suitable For	Earthing
Brand	DEHN
Type	Equipotential Bonding
Connector Type	T-/cross-/parallel connector
Surface Protection	Untreated
Thread Size	M10 x 48mm
Dimensions (mm)	9W x 9H x 3D
Weight (kg)	0.288
Standards and Approvals	EN 62561-1

Lightning & Surge Protection

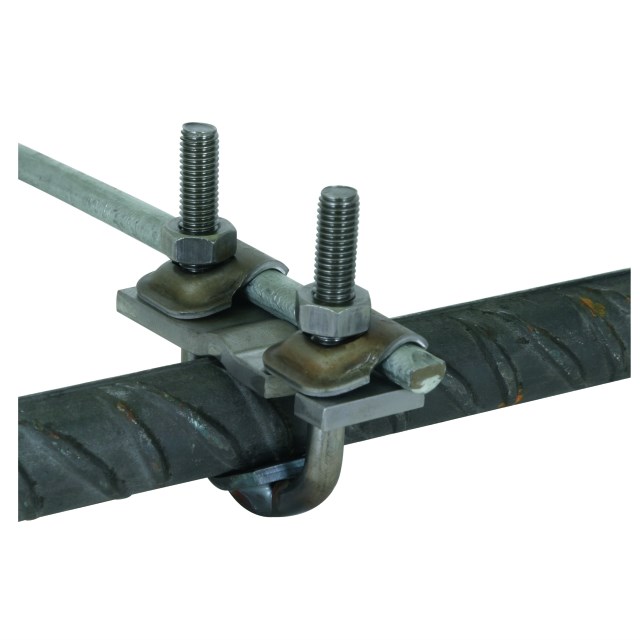

DEHN CONN. CLAMP ST/BARE F. D 16-48 RD 10mm/FL 30-40mm, 2 CLAMP. F 308046
