Specifications

Dimensions (mm)	70W x 40D
Suitable For	For a round and a flat conductor with threaded base part
Weight (kg)	0.177
Class (Lightning Current Carrying Capability) (kA)	100/50
Reference No.	454100
Clamping Range (mm)	7-10/30
Weight (g)	177
Surface Protection	Hot-dip Galvanized
Gross Weight (g)	181
Conductor Diameter (mm)	7 - 10
Clamping Range Rd/Fl (mm)	7 - 10 / 30 - 40

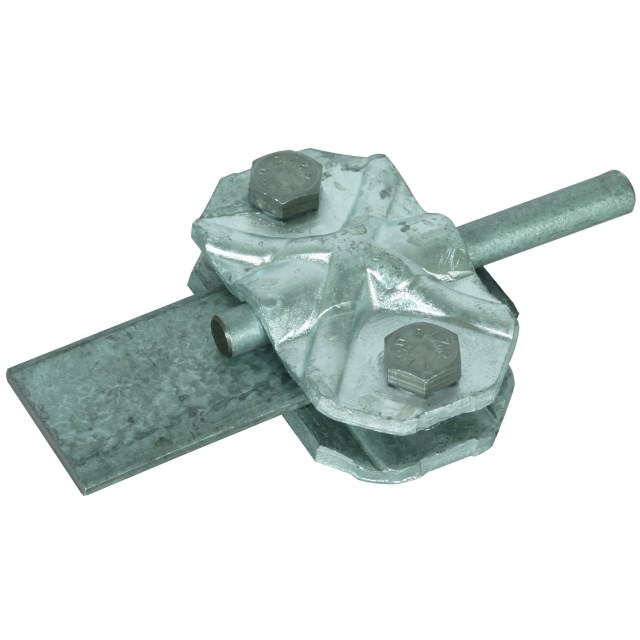

Product Type	Connector Clamp
Brand	DEHN
Clamping Range	7-10 mm, 30-40 mm
Connection Type	M8 x 20 mm Screw
Connector Type	Connecting/Disconnecting clamps
Depth	40 mm
Finish	Hot Dip Galvanized
Lightning Current Carrying Capability	50 kA, 100 kA
Material	Steel
Screw Size	M8
Standards and Approvals	EN 62561-1
Weight	177 g
Width	70 mm
