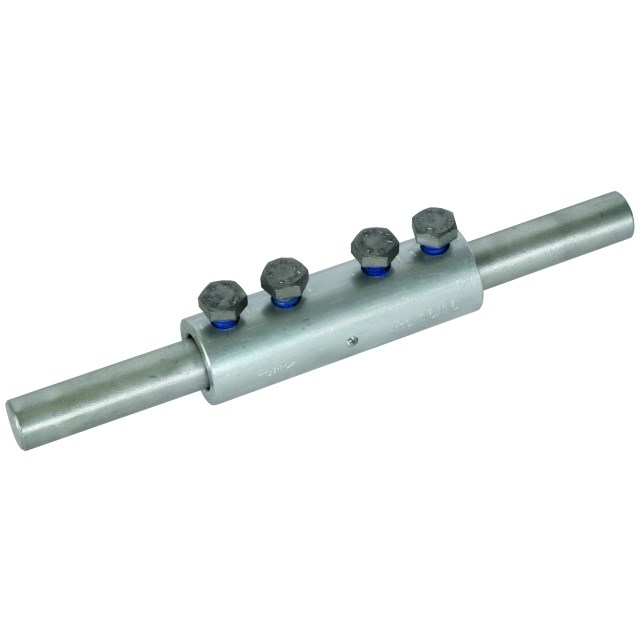

DEHN 385216 Connecting Sleeve M8 x 12mm Screw 4mm W 3mm D 9mm H M6 x 12mm Aluminium

Product Code: 385216

  • M8 x 12 mm screw connection
  • Aluminium material for durability
  • Complies with EN 62561-1 standards
  • Handles up to 100 kA lightning current
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 4W x 9H x 3D
Suitable For Earthing
Weight (kg) 0.14
Surface Protection Untreated
Conductor Diameter (mm) 16
Lightning current load-bearing capacity (10/350µs) 100
Type Equipotential Bonding
Clamping Range (mm) 16 / 16
Product Type Connecting Sleeve
Brand DEHN
Clamping Range 16 mm, 16 mm
Connection Type M8 x 12 mm Screw
Connector Type Sleeve connection
Depth 3 mm
Finish Untreated
Height 9 mm
Lid Screw Type Hexagon screw
Lightning Current Carrying Capability 100 kA
Material Aluminium
Screw Size M8 x 12
Standards and Approvals EN 62561-1
Thread Size M6 x 12 mm
Weight 133 g
Width 4 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
