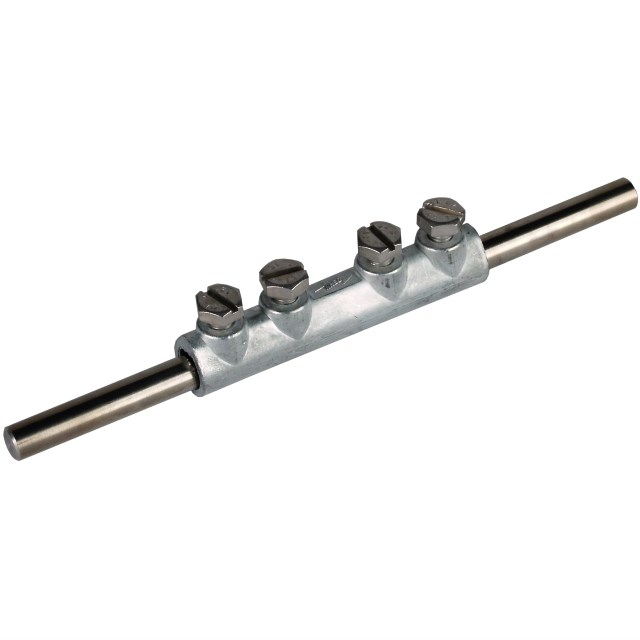

DEHN 385203 Connecting Sleeve M6 x 10mm Screw 2mm W 1mm D 8mm H M6 x 12mm Die Cast Zinc

Product Code: 385203

  • M6 x 10 mm screw connection
  • Die cast zinc material
  • Clamping range of 8 mm
  • Lightning current capability: 100 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 2W x 8H x 1D
Weight (kg) 0.07
Surface Protection Untreated
Conductor Diameter (mm) 8
Lightning current load-bearing capacity (10/350µs) 100
Clamping Range (mm) 7 - 10
Product Type Connecting Sleeve
Brand DEHN
Clamping Range 8 mm
Connection Type M6 x 10 mm Screw
Connector Type Sleeve connection
Depth 1 mm
Finish Untreated
Height 8 mm
Lid Screw Type Hexagon screw
Lightning Current Carrying Capability 100 kA
Material Die Cast Zinc
Screw Size M6 x 12
Standards and Approvals EN 62561-1
Thread Size M6 x 12 mm
Width 2 mm
