Remove	Yes
Brand	ABB
Contacts	1NO
Degree of Protection	IP20 (Terminals)
Dimensions (mm)	10W X 44H X 28D
Illumination	Non-Illuminated
Maximum Operational Voltage AC (V)	690
Maximum Operational Voltage DC (V)	690
Mounting Type	Rear
Operational Temperature Range (°C)	-25 to +70
Power Loss (W)	Maximum 2.5
Rated Frequency (Hz)	50/60
Rated Operational Current 125V DC (A)	1.1
Rated Operational Current 240V AC (A)	6
Rated Operational Current 24V DC (A)	5
Terminal Type	Screw Terminals
Tightening Torque (Nm)	0.9

Pilot & Signalling Devices

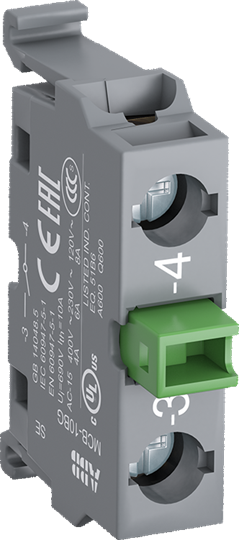

ABB MCB-10B CONTACT BLOCK 1NO REAR MOUNTING FOR COMPACT & MODULAR
