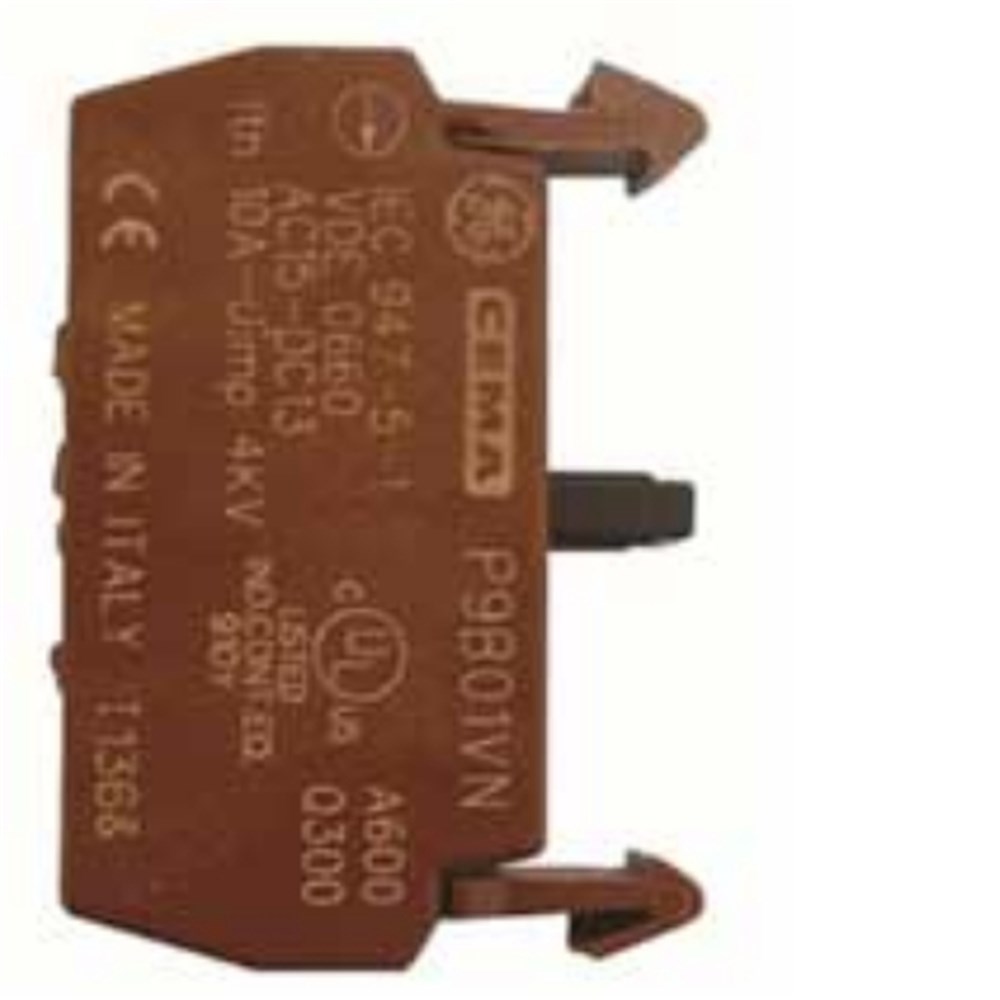

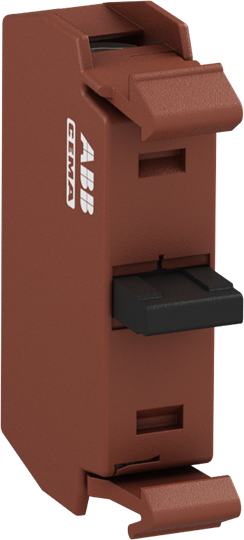

ABB CONTACT BLOCK SINGLE FOR 3 AND 5 POS. HOLDER 1NC P9B01VN

Product Code: P9B01VN

The P9B01VN Contact Block is: Modular metal - Contact Block - Brown - Front mounting - 1NC. This Contact Block is part of ABB's modular metal range designed for mining, construction and heavy industry applications, combining the highest reliability with the full flexibility of a modular range.

Technical Specifications

Connecting Capacity Flexible with Ferrule 1/2 x 0.75 - 2.5mm² Flexible with Insulated Ferrule 1/2 x 0.75 - 2.5mm² Flexible 1/2 x 0.75 - 2.5mm² Solid 1/2 x 0.75 - 2.5mm²
Brand ABB
Ambient Temperature Range (°C) -30 to 70
Colour Brown
Connection Type Screw Clamp
Degree of Protection Terminals: IP20
Dimensions (mm) 9.6W x 39.5H x 27.7D
Mounting Type Front Mount
No. of Auxiliary Contacts 1 NC
No. of Normally-closed Auxiliary Contacts 1
Pollution Degree 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 690
Storage Temperature Range (°C) -40 to 70
Terminal Type Screw
Tightening Torque (Nm) 0.9
Weight (kg) 0.009
Wire Stripping Length (mm) 10
