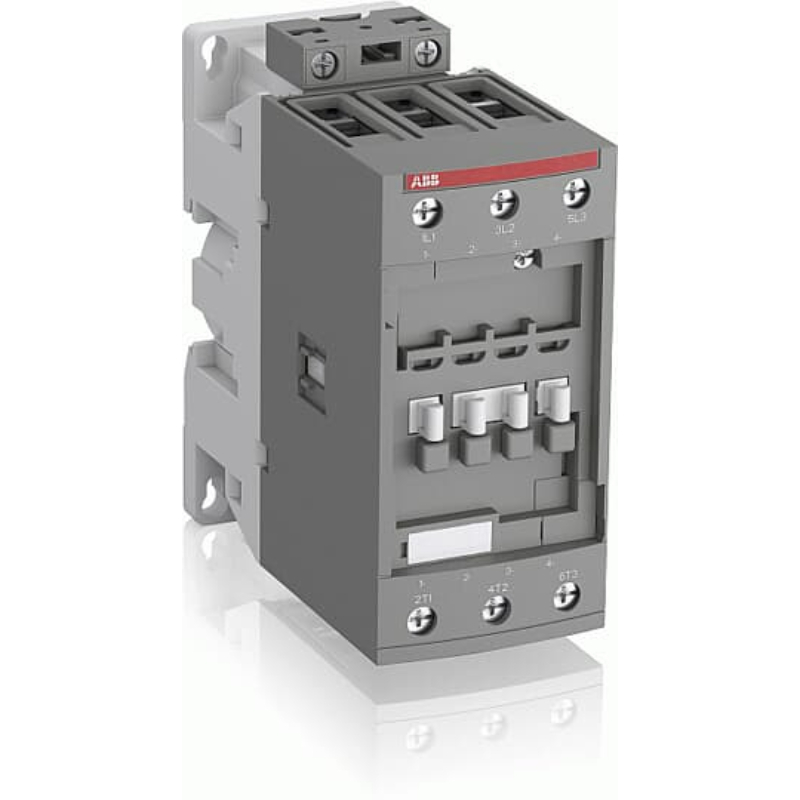

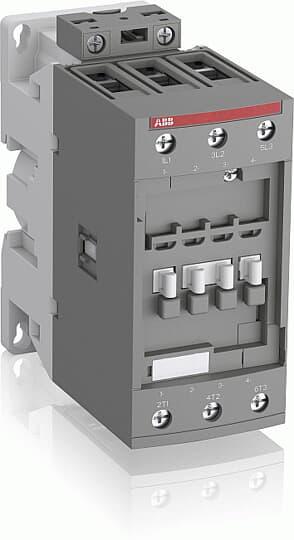

<p>When selecting an AF Contactor for your industrial or commercial applications, understanding the technical specifications is crucial. This contactor is designed to operate efficiently within a range of demanding environments, ensuring reliability and performance.</p><p>This AF Contactor operates at a rated voltage of 690 VAC and can handle a current of up to 105 A. It supports both 50 Hz and 60 Hz frequencies, providing flexibility for various electrical systems. The power loss ranges from 2.7 to 7 W, indicating efficient energy usage during operation.</p><p>The contactor&#39;s rated impulse withstand voltage stands at 6 kV, offering robust protection against transient over-voltages that may occur in your system. With a rated insulation voltage also set at 690 V, this ensures safety and durability under standard operating conditions.</p><p>Featuring a contact configuration of 3NO (three normally open contacts), this contactor is well-suited for straightforward switching operations in motor control circuits or similar applications. Its screw terminal type allows for secure connections, reducing the risk of loose wires which can lead to operational failures.</p><p>With an IP10 degree of protection, it’s important to note that while this provides basic protection against solid objects greater than 50 mm in size (such as accidental touch by hands), additional enclosures might be necessary depending on environmental exposure risks in your installation area.</p><p>Flexibility in mounting options is provided with compatibility for both DIN Rail and Panel mounting setups. This adaptability simplifies integration into existing systems or new installations according to your specific requirements.</p><p>In terms of dimensions, the compact design measures at a width of 55 mm, height of 125.5 mm, and depth of 111 mm—making it suitable for space-constrained panels without compromising on functionality or accessibility during maintenance tasks.</p><p>Rated power capacity reaches up to an impressive 30 kW which covers many medium-duty industrial applications effectively—from controlling motors to other heavy electrical loads within its specified limits.</p><p>It’s built with resilience in mind; capable of withstanding storage temperatures ranging from -60&#176;C up to +80&#176;C—ensuring stability across varying climates before installation takes place without degrading component integrity over time due extreme temperature fluctuations encountered during transport/storage phases prior use onsite deployment scenarios where ambient conditions fluctuate widely seasonally/regionally across Australia’s diverse landscape/climates zones alike!</p><p>For those assessing suitability based upon these parameters alone should find confidence knowing each specification has been carefully crafted engineered deliver optimal performance longevity expected such critical infrastructure elements demand daily basis!</p>
