| Conventional Free-Air Thermal Current - Ith (A) |
acc. to IEC 60947-4-1, Open Contactors T = 40 °C 35 A
acc. to IEC 60947-5-1, T = 40 °C 16 A |
| Dimensions (mm) |
86 * 45 * 77 [H*W*D] |
| No. of Poles |
3 |
| Rated Frequency (Hz) |
50 / 60 |
| Rated Impulse Withstand Voltage (kV) |
6 |
| Rated Operational Voltage AC (V) |
Auxiliary Circuit 690 V
Main Circuit 690 V |
| Standards |
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| No. of Auxiliary Contacts |
1 NO |
| Type of Mounting |
2 x M4 screws placed diagonally (not supplied). |
| Wire Stripping Length (mm) |
10 |
| Rated Operational Power AC-3 (kW) |
(400 V) 4 kW
(415 V) 4 kW
(440 V) 4 kW
(500 V) 5.5 kW
(690 V) 5.5 kW
(380 / 400 V) 4 kW
(220 / 230 / 240 V) 2.2 kW |
| No. of Main Contacts |
3 NO |
| Rated Operational Current AC-3 (A) |
(415 V) 60 °C 9 A
(440 V) 60 °C 9 A
(500 V) 60 °C 9.5 A
(690 V) 60 °C 7 A
(380 / 400 V) 60 °C 9 A
(220 / 230 / 240 V) 60 °C 9 A |
| Maximum Breaking Capacity |
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A |
| Rated Operational Current AC-1 (A) |
(690 V) 40 °C 25 A
(690 V) 60 °C 25 A
(690 V) 70 °C 22 A |
| Maximum Mechanical Switching Frequency |
3600 cycles per hour |
| Rated Control Voltage |
50 Hz 48 ... 130 V
60 Hz 48 ... 130 V
DC Operation 48 ... 130 V |
| DIN Rail Mounting |
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Cable Sections - Main Circuit |
Flexible with Ferrule 1/2x 0.75 ... 6 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 4 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²
Rigid Solid 1/2x 1 ... 4 mm²
Rigid Stranded 1/2x 1 ... 6 mm² |
| Cable Sections - Auxiliary Circuit |
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Rigid Solid 1/2x 1 ... 2.5 mm²
Rigid Stranded 1/2x 1 ... 2.5 mm² |
| Cable Sections - Control Circuit |
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Rigid Solid 1/2x 1 ... 2.5 mm²
Rigid Stranded 1/2x 1 ... 2.5 mm² |
| Maximum Electrical Switching Frequency |
(AC-1) 600 cycles per hour
(AC-15) 1200 cycles per hour
(AC-2 / AC-4) 300 cycles per hour
(AC-3) 1200 cycles per hour
(DC-13) 900 cycles per hour |

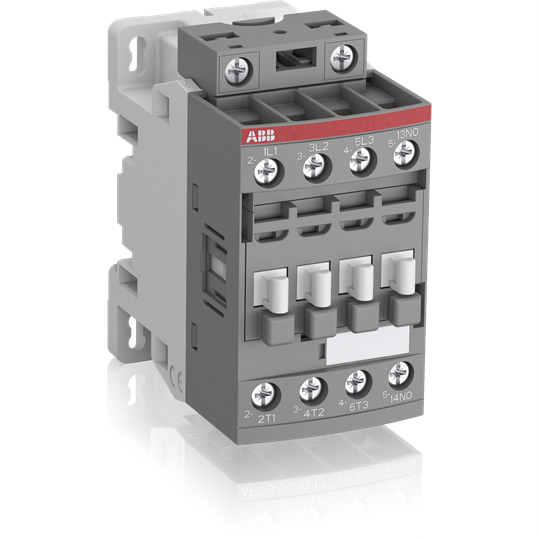

| Product Type |
Contactor |
| Brand |
ABB |
| Air Thermal Current |
35 A, 16 A |
| Clamp Type |
Screw Terminals |
| Contact Configuration |
3NO |
| Degree of Pollution |
IP3 |
| Degree of Protection |
IP20 |
| Depth |
77 mm |
| Height |
86 mm |
| Mounting Type |
Screw |
| Number of Poles |
3 |
| Rated Current |
25 A, 22 A |
| Rated Frequency |
50/60 Hz |
| Rated Impulse Withstand Voltage |
6 kV |
| Rated Insulation Voltage |
690 VAC, 600 V |
| Rated Short Time Withstand Current |
10 sec 350 A, 15 min 50 A, 1 min 150 A, 1 sec 700 A, 30 sec 225 A |
| Rated Voltage |
690 VAC |
| Standards and Approvals |
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Terminal Type |
Screw |
| Tightening Torque |
1.2 N-m Auxiliary Circuit/Control Circuit, 1.5 N-m Main Circuit |
| Width |
45 mm |
| Wire Stripping Length |
10 mm |
