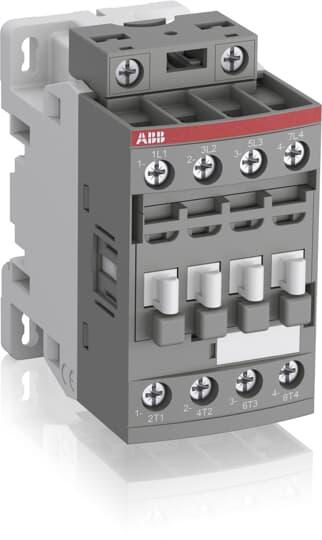

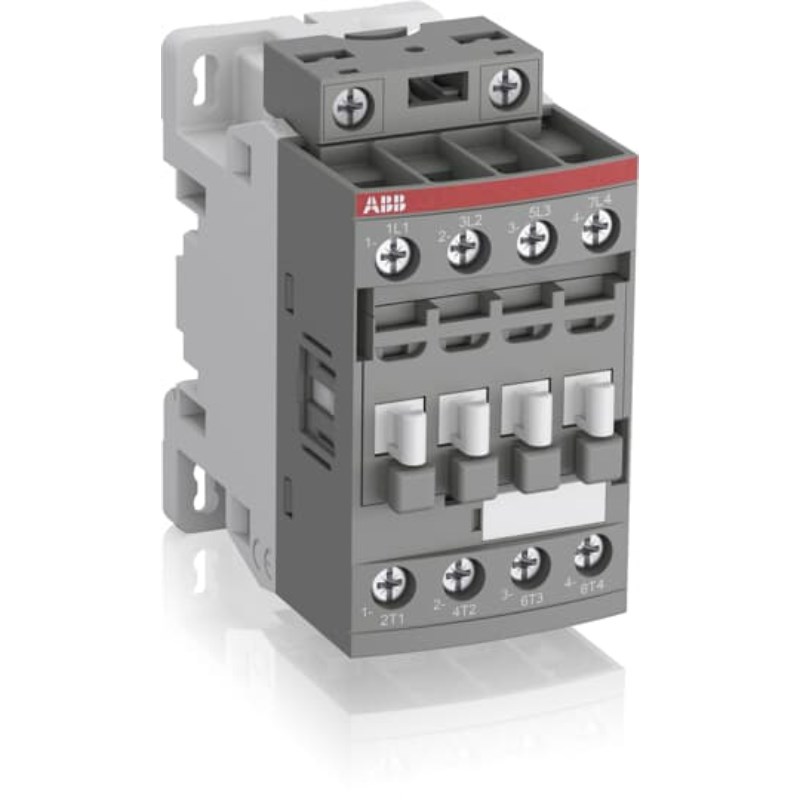

ABB AF09400013 AF CONTACTOR 4P, 25A (AC-1), 4KW 415VAC CONTROL 100-250VAC/DC

Product Code: AF09400013

The AF Contactor 4P (4NO) is a versatile and reliable electrical component. It has a rated operational current of 25A at 690V (AC1) and 9A at 415V (AC-3), making it suitable for various applications. With a power rating of 4kW, it can handle demanding loads. One of the standout features of this contactor is its control voltage range of 100-250V AC/DC. This wide range allows for easy integration into different systems and ensures consistent performance even in the face of large control voltage variations. Additionally, it helps reduce panel energy consumption, making it an energy-efficient choice. The AF Contactor 4P can be easily expanded with add-on auxiliary contact blocks, providing flexibility for customization based on specific requirements. It also comes with built-in surge suppression, offering protection against voltage spikes and ensuring reliable operation. This contactor is designed to excel in unstable networks, delivering distinct operations and maintaining stability even in challenging conditions. It can be conveniently mounted either on DIN rails or panels, providing versatility in installation options. Overall, the AF Contactor 4P is a high-quality electrical component that combines performance, flexibility, and reliability. Its ability to manage large control voltage variations, reduce energy consumption, and ensure stable operations makes it an excellent choice for various industrial applications.

Technical Specifications

Brand ABB
Contacts 4NO (Main Contacts)
Degree of Protection IP20
Dimensions (mm) 86H x 77D x 45W
Mounting Type DIN Rail/Panel
No. of Poles 4P
Rated Control Circuit Voltage AC/DC (V) 100 - 250
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 690
Rated Operational Current AC-1 690V (A) 25
Rated Operational Current AC-3 415V (A) 9
Rated Operational Power AC-3 415V (kW) 4
Rated Operational Voltage AC (V) 690
Terminal Type Screw
