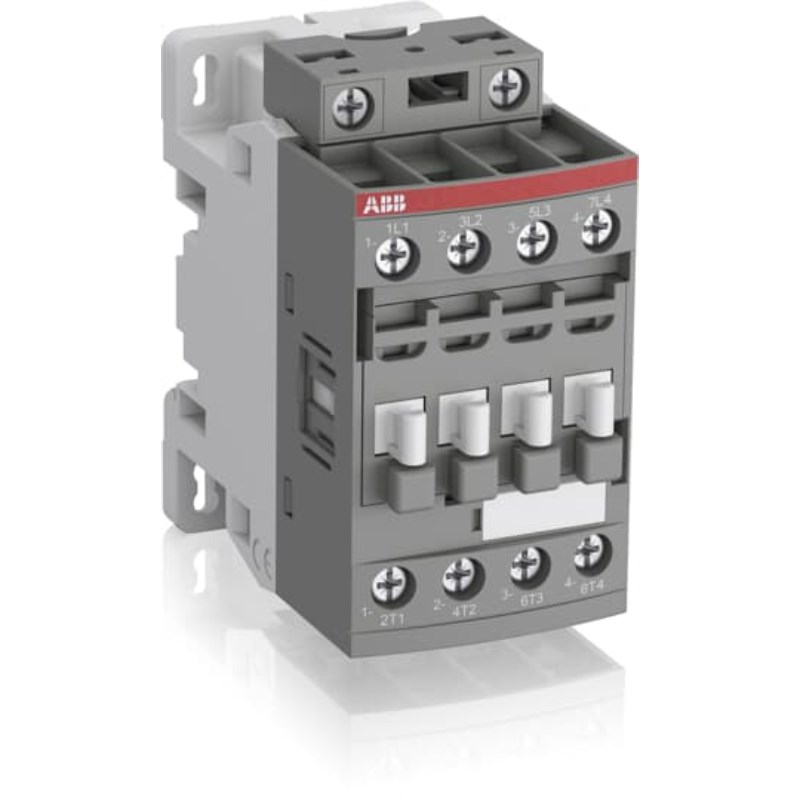

ABB AF09400011 AF CONTACTOR 4P, 25A (AC-1), 4KW 415VAC CONTROL 24-60VAC/20-60VDC

Product Code: AF09400011

The AF Contactor 4P (4NO) is a versatile and reliable electrical component. It has a rated operational current of 25A at 690V (AC1) and 9A at 415V (AC-3), making it suitable for various applications up to 4kW. With a control voltage range of 24-60V AC / 20-60V DC, this contactor is not directly compatible with PLC-output control. However, it can be easily expanded with add-on auxiliary contact blocks to enhance its functionality. One notable feature of the AF Contactor is its built-in surge suppression capability. This allows it to effectively manage large control voltage variations, resulting in reduced panel energy consumption and ensuring reliable operations even in unstable networks. Installation options are flexible as well, as the AF Contactor can be mounted either on DIN rails or panels.

Technical Specifications

Brand ABB
Contacts 4NO (Main Contacts)
Degree of Protection IP20
Dimensions (mm) 86H x 77D x 45W
Mounting Type DIN Rail/Panel
No. of Poles 4P
Rated Control Circuit Voltage AC (V) 24 - 60
Rated Control Circuit Voltage DC (V) 20 - 60
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 690
Rated Operational Current AC-1 690V (A) 25
Rated Operational Current AC-3 415V (A) 9
Rated Operational Power AC-3 415V (kW) 4
Rated Operational Voltage AC (V) 690
Terminal Type Screw
