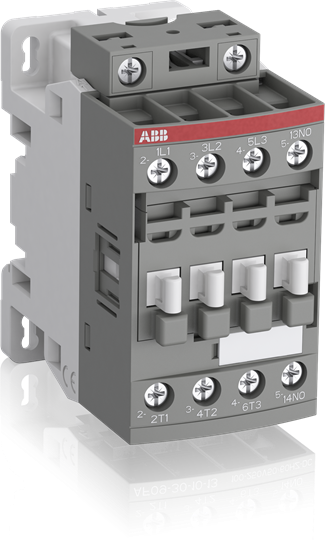

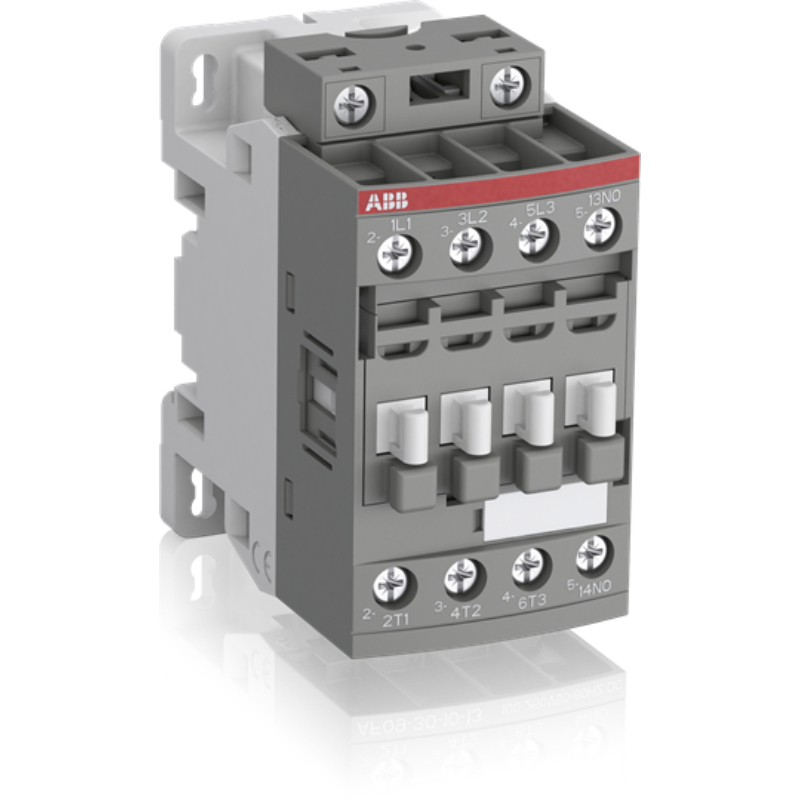

ABB AF16Z300121 AF CONTACTOR 3P 30A (AC-1), 9KW 400VAC, CONTROL 24-60VAC/20-60VDC AUX 1NC DIRECT PLC
Zoom
Zoom
Zoom
ABB AF16Z300121 AF CONTACTOR 3P 30A (AC-1), 9KW 400VAC, CONTROL 24-60VAC/20-60VDC AUX 1NC DIRECT PLC
Product Code: AF16Z300121
The AF Contactor 3P is a versatile and reliable electrical component designed for industrial applications. It has a rated operational current of 30A at 690V (AC1) and 18A at 400V (AC-3), making it suitable for handling high power loads up to 9kW. With a control voltage range of 24-60V AC or 20-60V DC, this contactor can effectively manage large control voltage variations, ensuring stable and efficient operations even in unstable networks. It features built-in auxiliary contacts with 1 normally closed (NC) configuration, providing additional flexibility in control circuitry. The contactor also comes with built-in surge protection, safeguarding connected equipment from voltage spikes and surges. One of the key advantages of the AF Contactor is its ability to allow direct control by PLC-output, simplifying integration into automated systems. For ease of installation, the contactor can be mounted either on a DIN rail or directly on a panel. This flexibility makes it suitable for various industrial environments. In summary, the AF Contactor 3P is a reliable and efficient solution for managing high power loads in industrial applications. Its features such as large control voltage variation management, reduced energy consumption, distinct operations in unstable networks, built-in auxiliary contacts, surge protection, and compatibility with PLC-output make it an ideal choice for engineers seeking reliable electrical control solutions.
Print to PDF
Technical Specifications
Brand
ABB
Mounting Type
DIN Rail/Panel
Auxiliary Contacts
1NC
Contacts
3NO (Main Contacts)
No. of Poles
3P
Rated Control Circuit Voltage AC (V)
24 - 60
Rated Control Circuit Voltage DC (V)
20 - 60
Rated Frequency (Hz)
50/60
Rated Impulse Withstand Voltage (kV)
6
Rated Insulation Voltage (V)
690
Rated Operational Current AC-1 690V (A)
30
Rated Operational Current AC-3 415V (A)
18
Rated Operational Power AC-3 415V (kW)
9
Rated Operational Voltage AC (V)
690
Terminal Type
Screw
Dimensions (mm)
86H x 77D x 45W
Degree of Protection
IP20
