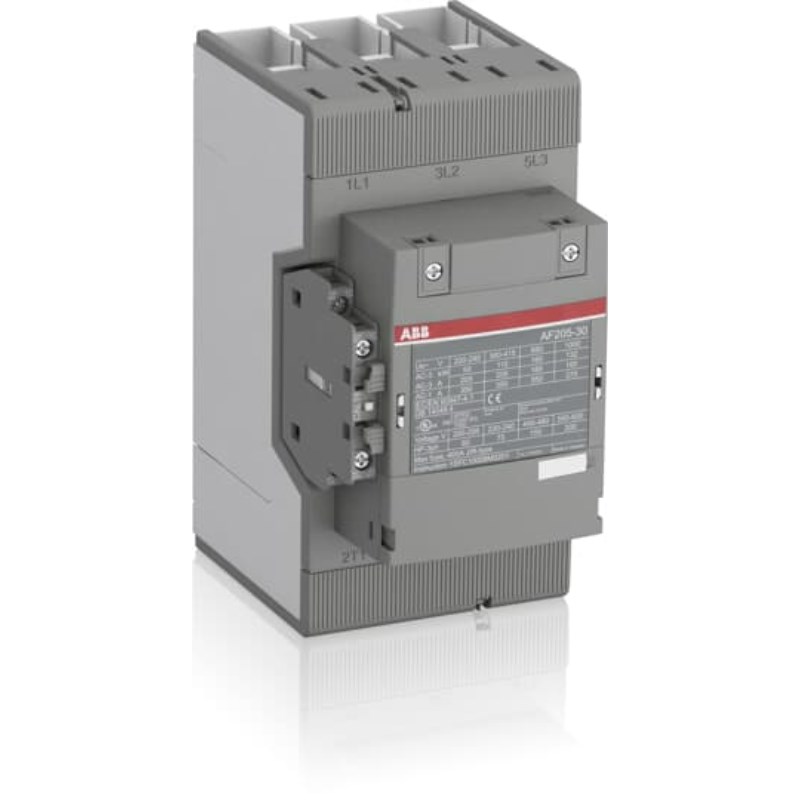

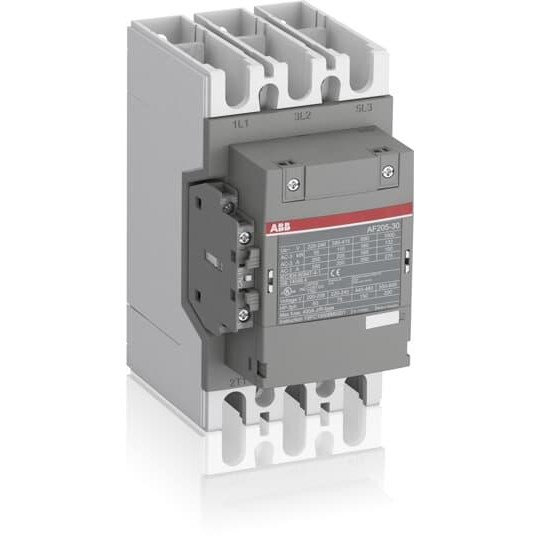

ABB AF205301111 AF Contactor 3P 3NO 350A 110kW 24-60VAC Bar Panel Mount

<p>The AF Contactor is a robust and reliable component designed for industrial and commercial applications. With its solid technical specifications, this contactor ensures efficient performance in demanding environments.</p><p>Operating within a rated voltage range of 24-60 VAC and supporting a rated current of 350 A, it caters to various electrical systems. The device functions effectively at both 50 Hz and 60 Hz frequencies, making it versatile for different regions or setups. Its power loss is minimal at just 8 W, contributing to energy efficiency.</p><p>Safety and durability are key features of this contactor. It boasts an impressive rated impulse withstand voltage of 8 kV, ensuring resilience against transient overvoltages. Additionally, the rated insulation voltage stands at 1000 V, providing robust protection against electrical faults.</p><p>The AF Contactor&amp;#39;s contact configuration is set as 3NO (three normally open contacts), which suits many standard applications requiring straightforward interaction with three-phase circuits. The terminal type is bar, facilitating secure connections during installation.</p><p>For protection against environmental factors, the device has an IP20 degree of protection rating. This level indicates that while it&amp;#39;s protected against solid objects larger than 12 mm like fingers or tools, additional enclosure might be necessary in dusty or wet environments.</p><p>Installation is straightforward with panel mounting capability. Its dimensions — width: 105 mm; height: 196 mm; depth: 152 mm — allow it to fit comfortably into most standard panels without consuming excessive space.</p><p>In terms of power handling capacity, the contactor supports up to a substantial rated power of 110 kW. For short circuit protection, it accommodates devices up to 400 A using gG type fuses, ensuring enhanced safety during operation.</p><p>Overall, this AF Contactor offers a blend of reliability and efficiency suitable for various industrial settings where dependable control components are paramount.</p>
