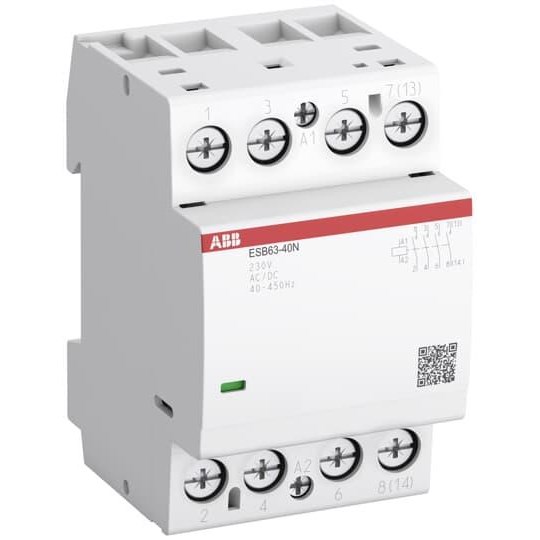

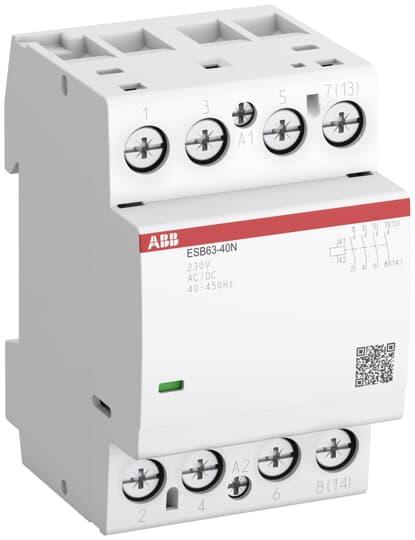

The ESB series DIN contactor is a robust and reliable solution for industrial and commercial applications, designed to meet the demanding needs of electrical systems. With a rated voltage of 400 VAC and a rated current of 63 A, this contactor is well-suited for managing substantial loads efficiently.
Operating at both AC and DC voltages, it offers versatility in various settings. The contact configuration features two normally open (2NO) contacts, making it ideal for straightforward control tasks. This product is equipped with screw terminals, ensuring secure connections that are easy to manage during installation or maintenance.
Engineered to withstand challenging environments, the ESB series boasts an IP20 degree of protection against solid objects over 12 mm in size, safeguarding internal components effectively. Additionally, with an operational temperature range from -25°C to 55°C, it performs reliably across diverse climatic conditions.
Safety is further enhanced by its rated impulse withstand voltage of 6 kV and an insulation voltage rating of 500 V. These specifications ensure that the device can handle transient overvoltages without compromising performance or safety.
The physical dimensions—54 mm width, 85 mm height, and 65 mm depth—allow for compact installation on standard DIN rails. This makes it suitable for use in space-constrained electrical panels while maintaining accessibility for technicians.
Rated at a power capacity of up to 5 kW, this contactor provides ample capability for powering motors or other high-demand equipment within its specified limits. Its design adheres to pollution degree IP3 standards, indicating moderate levels of environmental contamination are tolerable without affecting functionality.
Overall, the ESB series DIN contactor represents a balanced choice between performance and durability. It integrates seamlessly into existing setups while offering dependable operation under typical industrial conditions found in Australia’s varied landscapes.
