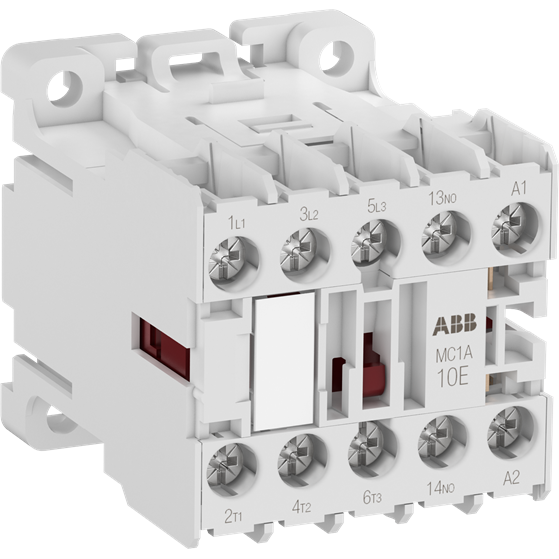

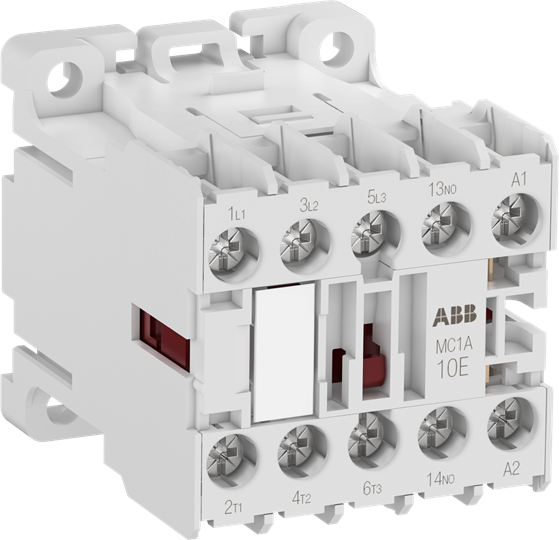

ABB MC1A310AT1 Mini Contactor 3P 5.5A 6kW 220-240VAC Screw DIN Rail Wall Mount

Product Code: MC1A310AT1

  • Compact size: 45x48x56 mm
  • Rated Voltage: 220-240 VAC
  • Current capacity: 5.5 A
  • IP20 protection rating
  • Operates at -40 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 3
Operating Voltage AC (V) 440
Operational Temperature Range (°C) -40 to +55
Power Loss (W) 0.7/pole AC-1
Rated Control Supply Voltage AC (V) 24
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 750
Rated Control Supply Voltage DC (V) 24
Rated Impulse Withstand Voltage (kV) 6
Rated Control Circuit Voltage AC (V) 24
Rated Operational Current AC-1 400V (A) 20
Rated Operational Power AC-3 400V (kW) 4
Rated Operational Voltage AC (V) 440
Auxiliary Contacts 1NO
Dimensions (mm) 45W x 48H x 56D
Rated Supply Voltage AC (V) 24
No. of Normally-open Contacts 3
Main Circuit Electrical Connection Screw Connection
No. of Normally-open Auxiliary Contacts 1
Product Type Mini Contactor
Brand ABB
Series M
Actuating Voltage Type AC
Contact Configuration 3NO
Degree of Protection IP20
Depth 56 mm
Electrical Connection Screw
Height 48 mm
Mode of Operation AC
Mounting Type DIN Rail, Wall
Number of Poles 3
Operational Temperature -40 to 55 deg C
Power Loss 0.7 W
Rated Current 5.5 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 750 V
Rated Power 6 kW
Rated Voltage 220-240 VAC
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1/-5-1, UL 60947-1, UL 60947-4-1
Terminal Type Screw
Width 45 mm

Description

The MC1A310AT1 mini contactor is a dimension optimized 3 pole contactor with 1 NO auxiliary contact and screw terminals. This product is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. The product is suitable for wall or rail mounting.
