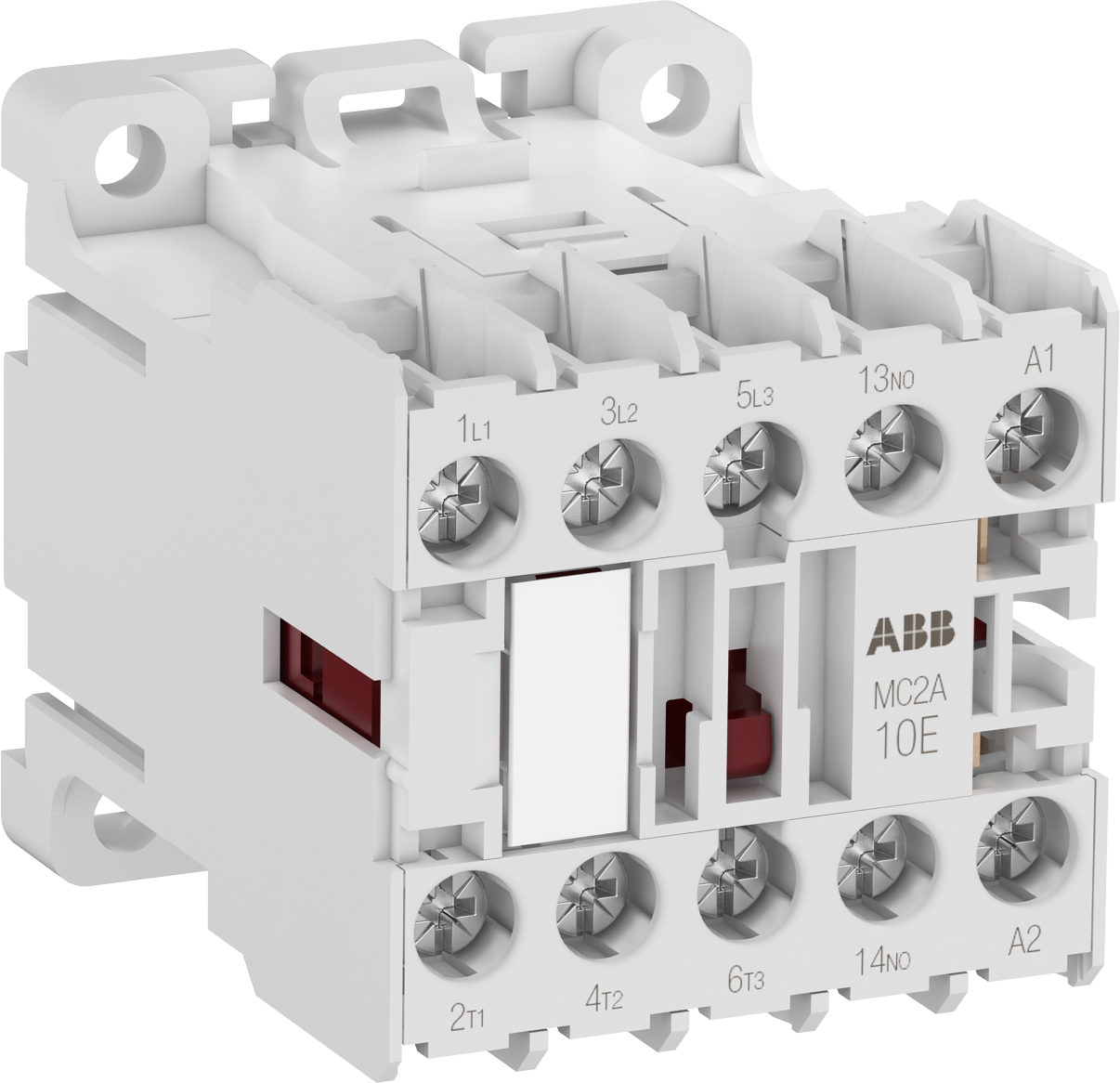

ABB MC2A310ATN Mini Contactor 3P 20A 5.5kW 220-240VAC Screw DIN Rail Wall Mount

Product Code: MC2A310ATN

  • Compact size: 45mm width, 48mm height, 56mm depth
  • Handles up to 20A current with a power rating of 5.5kW
  • Suitable for DIN rail or wall mounting
  • Operates in temperatures from -40 to 55°C
  • IP20 protection with screw terminals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Auxiliary Contacts 1NO
Dimensions (mm) 45W x 48H x 56D
No. of Poles 3
Operational Temperature Range (°C) -40 to +55
Power Loss (W) 0.7/Pole AC-1
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 750
Rated Impulse Withstand Voltage (kV) 6
Rated Control Circuit Voltage AC (V) 220 - 240
Rated Operational Current AC-1 400V (A) 20
Rated Operational Power AC-3 400V (kW) 5.5
Rated Operational Voltage AC (V) 690
No. of Normally-open Contacts 3
Product Type Mini Contactor
Brand ABB
Series M
Contact Configuration 3NO
Degree of Protection IP20
Depth 56 mm
Height 48 mm
Mode of Operation AC
Mounting Type DIN Rail, Wall
Number of Poles 3
Operational Temperature -40 to 55 deg C
Power Loss 0.7 W
Rated Current 20 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 750 V
Rated Power 5.5 kW
Rated Voltage 220-240 VAC
Terminal Type Screw
Width 45 mm

Description

The Mini Contactor 3P (3NO) is a compact and powerful solution for high-performance applications with limited space. It has a rated operational current of 20A at 400V AC1 and a power rating of 5.5kW at 400V AC-3. The control voltage is 220-240V AC. This contactor features one built-in auxiliary contact (1NO) and can accommodate up to six additional contacts with add-on auxiliary contact blocks, which can be mounted on the front or side. Mini contactors are versatile and widely used in residential buildings, commercial buildings, and various industrial applications. They are suitable for both DIN rail and wall mounting configurations.
