Specifications

Dimensions (mm)	253W x 355H x 300D
Rated Impulse Withstand Voltage (kV)	Main Circuit: 8kV
Rated Control Circuit Voltage AC (V)	24 - 60
Reference No.	1SFL637731R5122
Ambient Temperature Range (°C)	-40 to 70
Conventional Free-Air Thermal Current - Ith (A)	Open Contactors T = 40 °C 1100 A Open Contactors T = 60 °C 1050 A Open Contactors T = 70 °C 850 A
Weight (kg)	14.3
Rated Short-Time Withstand Current - Icw (kA)	At 40 °C Ambient Temp, in Free Air, from a Cold State: 1s 7.6kA 10s 6.3kA 30s 5.2kA 60s 3.8kA 15min 1.4kA
No. of Normally-open Contacts	2
No. of Normally-closed Auxiliary Contacts	2
No. of Normally-open Auxiliary Contacts	2
Rated Operational Voltage (V)	Main Circuit: 1500V
Product Type	GF Contractor
Brand	ABB
Air Thermal Current	1100 A, 1050 A, 850 A
Ambient Temperature	-40 to 70 deg C
Auxiliary Circuit Connecting Capacity	Flexible with Ferrule 2 x 0.75-2.5 sq-mm, Flexible with Insulated Ferrule 2 x 0.75-2.5 sq-mm, Flexible 2 x 0.75-2.5 sq-mm, Solid 2 x 1-4 sq-mm, Stranded 2 x 1-4 sq-mm
Contact Configuration	2NC+2NO
Degree of Protection	IP20
Depth	300 mm
Height	355 mm
Main Circuit Connecting Capacity	Solid 600 sq-mm
Rated Short Time Withstand Current	7.6 kA, 6.3 kA, 5.2 kA, 3.8 kA, 1.4 kA
Rated Voltage	1500 V
Terminal Type	Bar
Weight	14.3 kg
Width	253 mm

Description

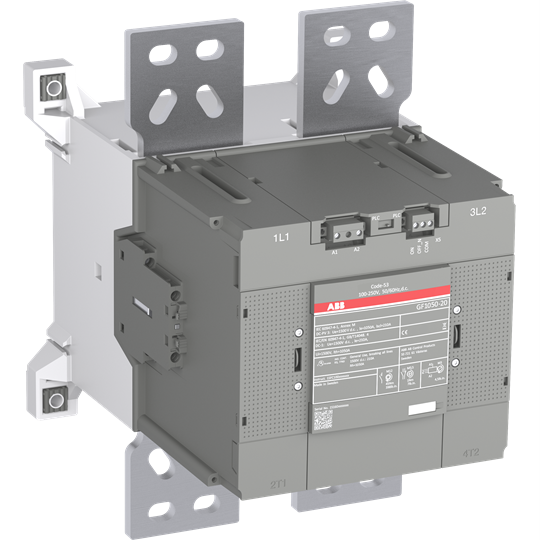

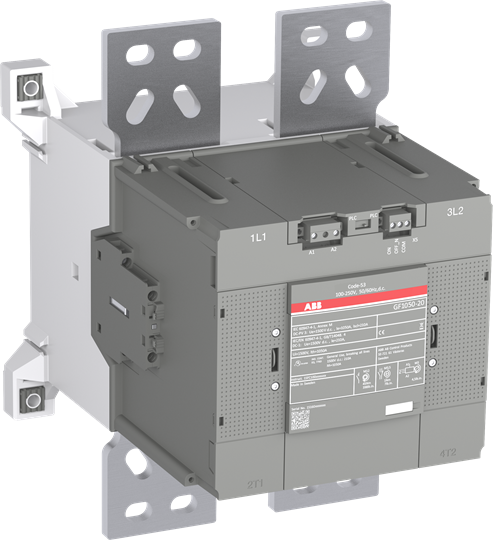

A 2-phase Contactor suitable for PV solar power applications up to max 1500V DC. Operated with wide voltage range 24-60V DC/AC 50/60Hz.
