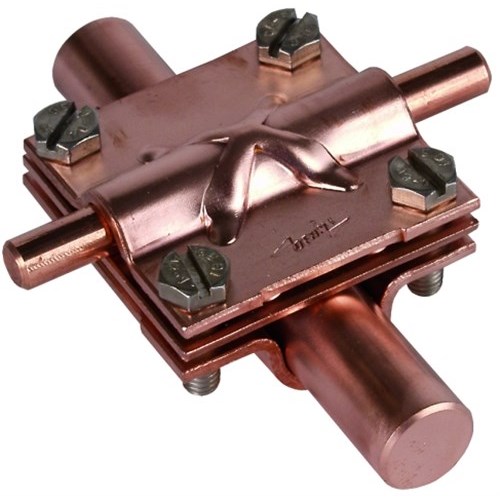

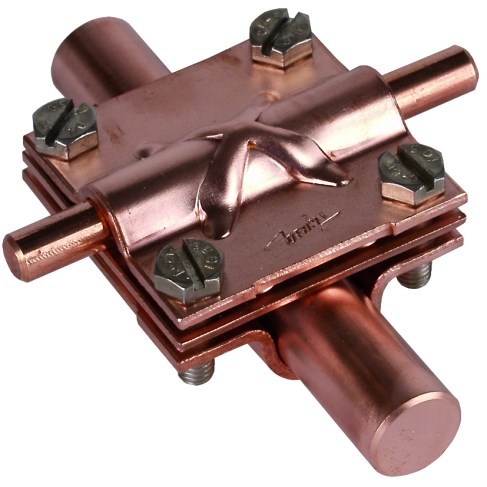

DEHN 316167 Cross Unit W/Intermediate Plate M6 x 20mm Screw 50mm W 2.5mm D 50mm H Copper

Product Code: 316167

  • Copper material ensures durability.
  • M6 x 20 mm screw connection.
  • Meets EN 62561-1 standards.
  • Lightning current capacity of 100 kA.
  • Clamping range: 16 mm, 8-10 mm.
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 50W x 50H x 2.5D
Reference No. 316167
Weight (kg) 0.209
Class (Lightning Current Carrying Capability) (kA) 100
Surface Protection Untreated
Conductor Diameter (mm) 16
Lightning current load-bearing capacity (10/350µs) 100
Clamping Range Rd/Rd (mm) 16 / 8-10
Clamping Range Rd/Fl (mm) 16 / 30
Product Type Cross Unit With Intermediate Plate
Brand DEHN
Clamping Range 16 mm, 8-10 mm
Conductor Size 16 mm
Connection Type M6 x 20 mm Screw
Connector Type Cross Connector
Depth 2.5 mm
Finish Untreated
Height 50 mm
Lid Screw Type Hexagon Screw
Lightning Current Carrying Capability 100 kA
Material Copper
Screw Size M6 x 20mm
Standards and Approvals EN 62561-1
Weight 0.209 kg
Width 50 mm
