Specifications

Dimensions (mm)	70W x 70H x 3D
Reference No.	321047
Weight (kg)	0.453
Class (Lightning Current Carrying Capability) (kA)	100
Surface Protection	Untreated
Conductor Diameter (mm)	8
Lightning current load-bearing capacity (10/350µs)	100
Clamping Range Rd/Fl (mm)	8-10 / 30-40 m
Clamping Range FI/Fl (mm)	30-40 / 30-40

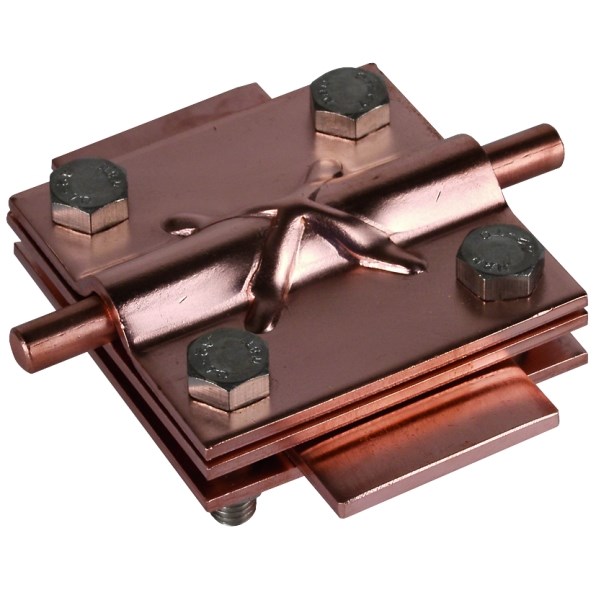

Product Type	Cross Unit
Brand	DEHN
Clamping Range	8-10 mm, 30-40 mm
Conductor Size	8 mm
Connection Type	M8 x 30 mm Screw
Connector Type	Cross Connector
Depth	3 mm
Finish	Untreated
Height	70 mm
Lid Screw Type	Hexagon Screw
Lightning Current Carrying Capability	100 kA
Material	Copper
Rated Short Circuit Current	35.1 kA
Screw Size	M8 x 30mm
Standards and Approvals	EN 62561-1
Weight	0.453 kg
Width	70 mm
