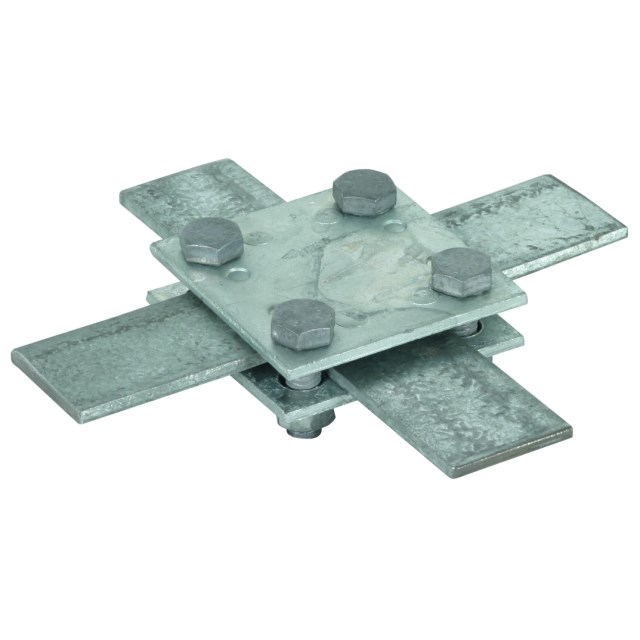

DEHN 318033 Cross Unit Without Intermediate Plate M8 x 25mm Screw 60mm W 30mm D 60mm H Steel

Product Code: 318033

  • M8 x 25 mm screw connection
  • Hot dip galvanized steel
  • Handles lightning currents up to 100 kA
  • Rated short circuit current: 8.4 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 60W x 60H x 30D
Reference No. 318033
Weight (kg) 0.236
Class (Lightning Current Carrying Capability) (kA) 100
Surface Protection Hot-dip Galvanized
Lightning current load-bearing capacity (10/350µs) 100
Clamping Range FI/Fl (mm) 30/30
Product Type Cross Unit Without Intermediate Plate
Brand DEHN
Clamping Range 30 mm
Connection Type M8 x 25 mm Screw
Connector Type Cross Connector
Depth 30 mm
Finish Hot Dip Galvanized
Height 60 mm
Lid Screw Type Hexagon Screw
Lightning Current Carrying Capability 100 kA
Material Steel
Rated Short Circuit Current 8.4 kA
Screw Size M8 x 25mm
Standards and Approvals EN 62561-1
Weight 0.236 kg
Width 60 mm
