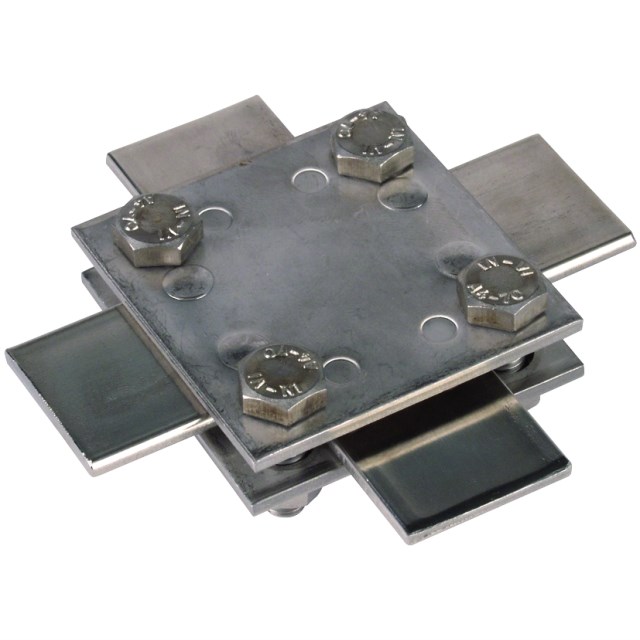

DEHN 318233 Cross Unit M8 x 25mm Screw 60mm W 3mm D 60mm H Stainless Steel

Product Code: 318233

  • Stainless steel for durability
  • M8 x 25 mm screw connection
  • Handles lightning current up to 100 kA
  • Rated short circuit current of 7 kA
  • Meets EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 60W x 60H x 3D
Reference No. 318233
Weight (kg) 0.225
Class (Lightning Current Carrying Capability) (kA) 100
Surface Protection Untreated
Lightning current load-bearing capacity (10/350µs) 100
Clamping Range FI/Fl (mm) 30/30
Product Type Cross Unit
Brand DEHN
Clamping Range 30 mm
Connection Type M8 x 25 mm Screw
Connector Type Cross Connector
Depth 3 mm
Finish Untreated
Height 60 mm
Lid Screw Type Hexagon Screw
Lightning Current Carrying Capability 100 kA
Material Stainless Steel
Rated Short Circuit Current 7 kA
Screw Size M8 x 25mm
Standards and Approvals EN 62561-1
Weight 0.225 kg
Width 60 mm
