Specifications

Dimensions (mm)	60W x 60H x 3D
Reference No.	319209
Weight (kg)	0.313
Class (Lightning Current Carrying Capability) (kA)	100
Surface Protection	Untreated
Conductor Diameter (mm)	8
Lightning current load-bearing capacity (10/350µs)	100
Clamping Range Rd/Rd (mm)	8-10 / 8-10
Clamping Range Rd/Fl (mm)	8-10 / 30
Clamping Range FI/Fl (mm)	30 / 30

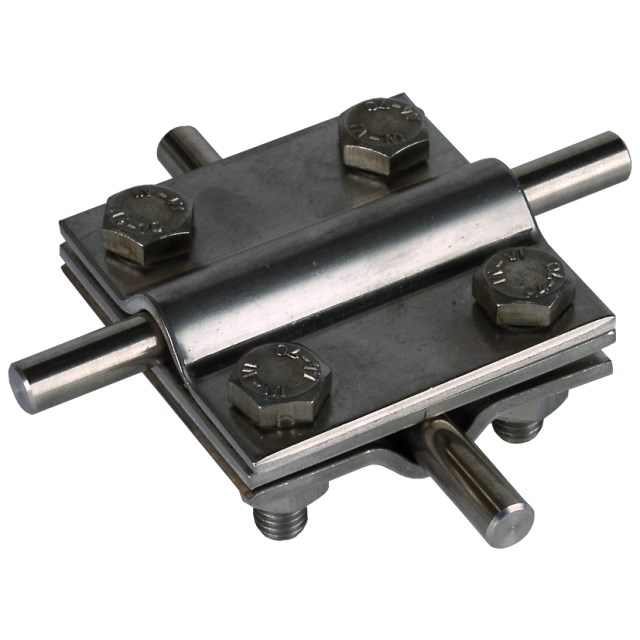

Product Type	Cross Unit
Brand	DEHN
Clamping Range	8-10 mm
Conductor Size	8 mm
Connection Type	M8 x 25 mm Screw
Connector Type	Cross Connector
Depth	3 mm
Finish	Untreated
Height	60 mm
Lid Screw Type	Hexagon Screw
Lightning Current Carrying Capability	100 kA
Material	Stainless Steel
Rated Short Circuit Current	7 kA
Screw Size	M8 x 25mm
Standards and Approvals	EN 62561-1
Weight	0.313 kg
Width	60 mm
