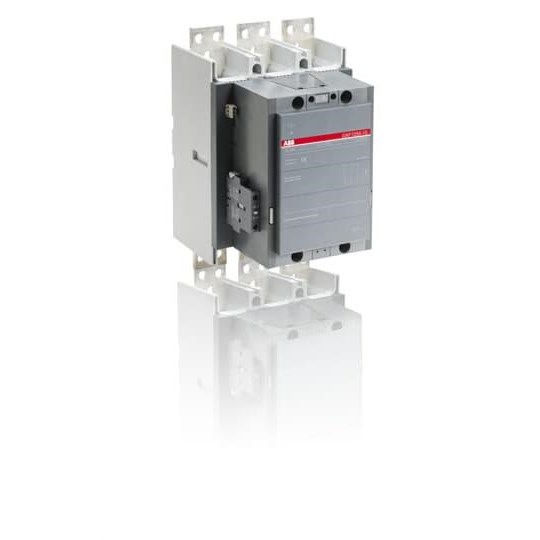

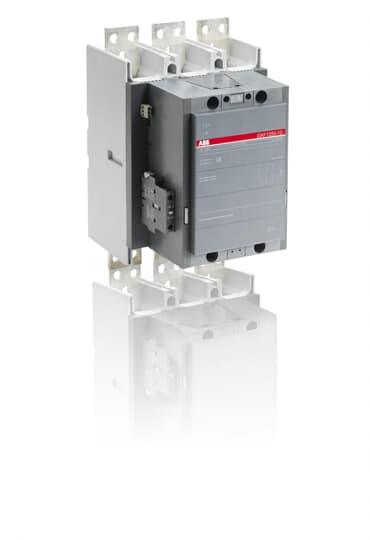

When selecting a DC contactor for industrial and commercial applications, understanding the technical specifications is crucial to ensure it aligns with your operational requirements. This particular DC contactor offers robust performance across various settings, thanks to its versatile design and comprehensive features.
The contactor operates effectively within a wide rated voltage range of 100-250 VAC/VDC. This flexibility makes it suitable for diverse electrical environments, accommodating both AC and DC systems without compromising on efficiency or reliability. With a substantial rated current of 1040 A, this unit is well-equipped to handle high-demand applications, making it ideal for industries that require consistent power delivery under heavy loads.
Power loss is a critical consideration in maintaining energy efficiency. At 80 W power loss, this contactor ensures minimal energy wastage while delivering optimal performance. Its rated impulse withstand voltage stands at an impressive 8 kV, providing enhanced protection against voltage spikes and ensuring system stability even in challenging conditions.
Safety and durability are further highlighted by its rated insulation voltage of 1000 V, which guarantees reliable operation over time. The contact configuration is designed as 1NO (normally open), offering straightforward integration into existing systems while simplifying maintenance routines.
The terminal type is bar-based, facilitating secure connections and promoting ease of installation. Rated with an IP20 degree of protection, this device offers basic protection against solid objects but should be installed in environments where exposure to dust or moisture can be controlled.
Mounting the unit is straightforward with its panel mounting type. Dimensions are also worth noting: at a width of 210 mm, height of 344 mm, and depth of 242 mm; these measurements allow for efficient space utilization within control panels or equipment housings.
Designed to withstand varying environmental conditions, the storage temperature ranges from -40 to 70 degrees Celsius—ensuring resilience during transport or when not in active use.
This DC contactor combines essential features tailored for demanding applications requiring reliable switching solutions across multiple sectors. Whether you're upgrading existing infrastructure or implementing new systems altogether—this component promises dependable service aligned with industry standards.
