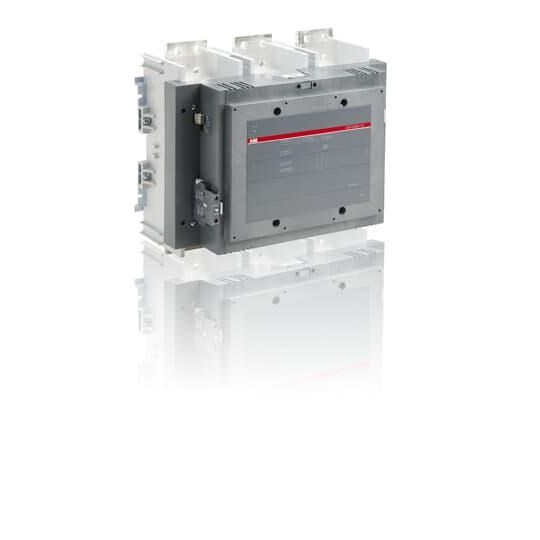

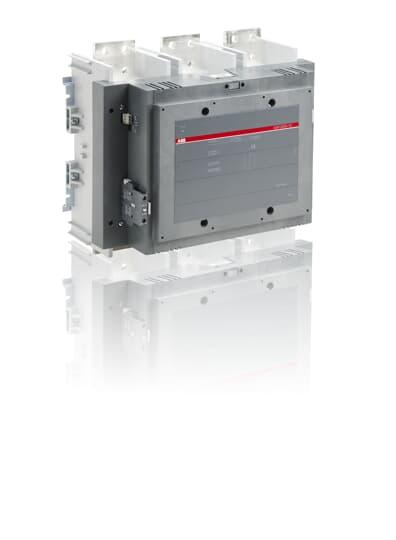

ABB GAF2050101170 DC CONTACTOR 1P 1750A (DC-1) 1000V, CONTROL 100-250VDC AUX 1NO+1NC

Product Code: GAF2050101170

The DC Contactor 1P (3P-in Series) is a powerful and versatile device designed for controlling shunt or series motors and resistive or slightly inductive loads. With a rated operational current of 1750A at 1000V, it provides reliable performance. The control voltage range of 100-250V AC/DC ensures compatibility with various power sources. Featuring built-in surge suppression, this contactor offers added protection against electrical surges. It comes with auxiliary contacts, including 1 normally open (NO) and 1 normally closed (NC), allowing for flexible control options. The contactor has a block type design with 3 main poles that are delivered connected in series, ensuring easy installation. Additionally, it supports add-on auxiliary contact blocks for convenient side mounting. With its suitability for panel mounting, this DC Contactor is an ideal choice for engineers seeking efficient and reliable control over their electrical systems.

Technical Specifications

Brand ABB
Auxiliary Contacts 1NO/1NC
Contacts 1NO (Main Contacts)
Degree of Protection IP20 (Coil Terminals)
Dimensions (mm) 392H x 244D x 438W
Mounting Type Panel
No. of Poles 1P (3P in Series)
Rated Control Circuit Voltage AC/DC (V) 100 - 250
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 1000
Rated Operational Current DC-1 1000V (A) 1750
Rated Operational Voltage DC (V) 1000
Terminal Type Main Circuit: Bars
