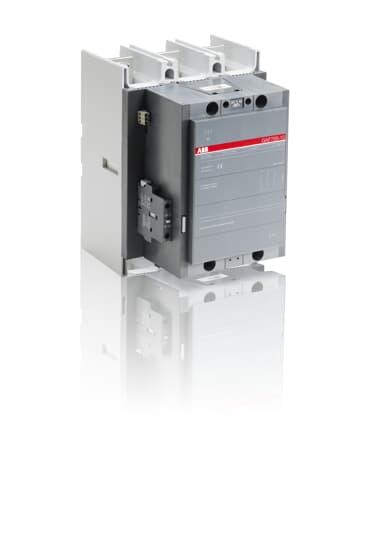

ABB GAF750101170 DC CONTACTOR 1P 875A (DC-1) 1000V, CONTROL 100-250VDC AUX 1NO+1NC

Product Code: GAF750101170

The DC Contactor 1P (3P-in Series) is designed for controlling shunt or series motors and resistive or slightly inductive loads. It has a rated operational current of 875A at 1000V. The control voltage can be between 100V to 250V AC/DC. It comes with built-in surge suppression and has auxiliary contacts of 1 normally open (NO) and 1 normally closed (NC). The contactor has a block type design with 3 main poles delivered connected in series. Additionally, there are add-on auxiliary contact blocks available for side mounting. This contactor is suitable for panel mounting.

Technical Specifications

Brand ABB
Auxiliary Contacts 1NO/1NC
Contacts 1NO (Main Contacts)
Degree of Protection IP20 (Coil Terminals)
Dimensions (mm) 283H x 242D x 210W
Mounting Type Panel
No. of Poles 1P (3P in Series)
Rated Control Circuit Voltage AC/DC (V) 100 - 250
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 1000
Rated Operational Current DC-1 1000V (A) 875
Rated Operational Voltage DC (V) 1000
Terminal Type Main Circuit: Bars
