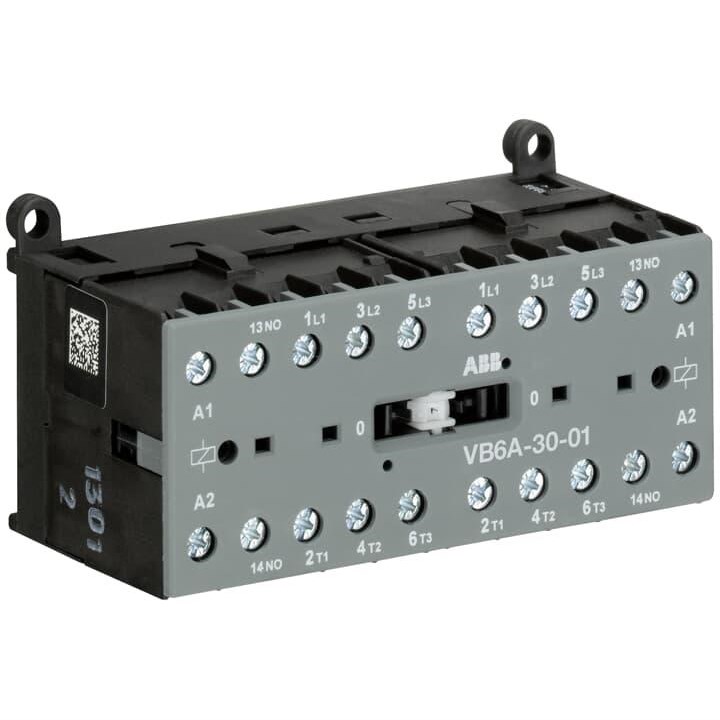

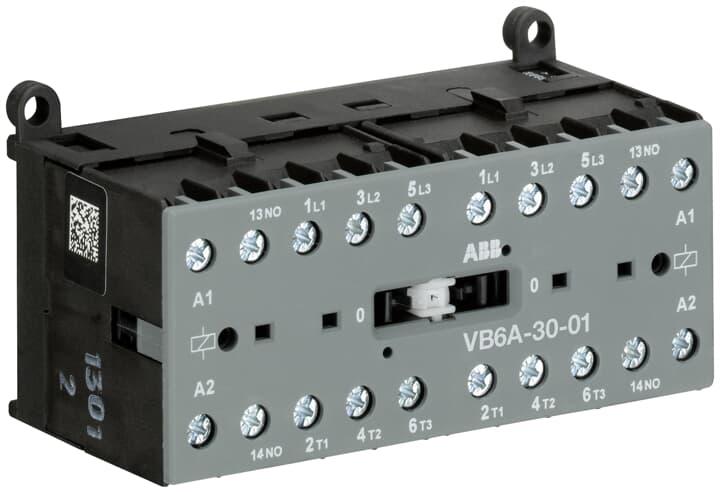

This mini contactor is an essential component for professionals in the industrial and commercial sectors seeking reliability and efficiency. Its compact design, with dimensions of 96.2 mm in width, 57.5 mm in height, and 46.7 mm in depth, ensures it fits seamlessly into a variety of setups without compromising on performance.
Operating at a rated voltage of 220-240 VAC and supporting a rated current of 6 A, this mini contactor is well-suited for medium-duty applications. It functions efficiently across standard frequencies of 50/60 Hz, making it versatile for various electrical systems. The unit's power loss ranges from just 1 to 2 W, which contributes to its energy-efficient operation over extended periods.
The device boasts a robust rated impulse withstand voltage of up to 6 kV and a rated insulation voltage of 690 V, offering excellent protection against electrical surges and ensuring long-term durability under demanding conditions. With an IP20 degree of protection, it provides adequate safeguarding against solid objects larger than 12 mm but should be installed in environments where exposure to moisture or dust is minimal.
For those concerned about environmental resilience, this contactor operates effectively within temperatures ranging from -20 to +55 degrees Celsius. This makes it suitable for use in diverse climates found across Australia.
The contact configuration includes one normally closed (NC) and three normally open (NO) contacts, providing flexibility for various control applications. Installation is straightforward due to its rail mounting type and screw terminal connections that simplify wiring tasks while ensuring secure electrical connections.
Meeting stringent standards such as IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1 along with UL approvals UL 60947-1 and UL 60947-4-1 ensures compliance with international safety guidelines—an important consideration for any technical professional prioritizing quality assurance.
Additionally certified under IEC 60335-2-40 A2L standards means it's recognized for safe use even alongside household appliances—a testament to its versatility beyond purely industrial settings.
Rated at a power capacity of up-to four kilowatts (kW), this mini contactor can handle substantial loads suited particularly well when paired with actuating voltages using alternating current (AC).
In summary: whether you're looking at expanding your existing setup or implementing new installations requiring reliable switching capabilities—the specifications outlined here assure you’re making an informed choice backed by proven standards compliance.
