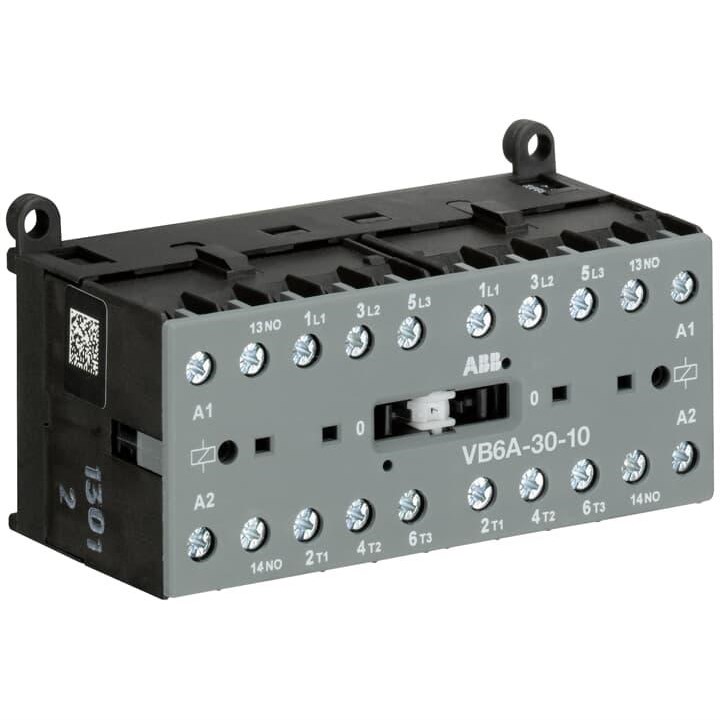

The Mini Contactor is an industrial-grade device designed to meet the demands of various commercial applications. With a rated voltage of 220-240 VAC and a current capacity of 6 A, it is suitable for a range of electrical systems. This contactor operates efficiently across both 50 Hz and 60 Hz frequencies, making it versatile for global usage.
Engineered with precision, this contactor features a power loss between 1-2 W, ensuring minimal energy wastage during operation. The rated impulse withstand voltage stands at an impressive 6 kV, which provides robust protection against transient overvoltages that can occur in industrial environments.
Safety and reliability are paramount in its design, as evidenced by its IP20 degree of protection. This rating indicates that the device is protected against solid objects greater than 12 mm but does not provide protection against liquids. Additionally, it boasts an IP3 degree of pollution resistance which ensures dependable performance even in moderately polluted environments.
The contact configuration includes one normally closed (NC) and three normally open (NO) contacts, offering flexibility in controlling circuits. Its screw terminal type facilitates secure electrical connections while simplifying installation processes.
Mounting this mini contactor is straightforward due to its rail mounting capability, allowing for easy integration into existing setups. Its compact dimensions—96.2 mm width, 57.5 mm height, and 46.7 mm depth—make it ideal for installations where space is limited without compromising on functionality.
This product adheres to several international standards such as IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1 along with UL certifications like UL 60947-1 and UL 60947-4-1 ensuring compliance with rigorous safety requirements globally. Furthermore it meets IEC standard IEC60335-2-40 A2L indicating suitability for specific household appliances or similar equipment.
Operational temperatures range from -20°C to +55°C enabling reliable performance under varying climatic conditions typical in Australia’s diverse landscapes whether it's the cooler southern regions or warmer northern areas.
With a rated power output capability up to four kilowatts (kW), this mini contactor can effectively handle substantial loads required by many modern machines or systems found within industries today while using AC actuating voltage type providing stability during activation cycles needed frequently across operations involving automation controls etcetera
Overall if you're seeking dependable mid-cycle solution capable handling moderate electrical loads safely efficiently then look no further than our Mini Contactor complete package ready tackle your technical needs head-on!
