In the world of industrial and commercial electrical systems, choosing the right components is crucial for ensuring efficiency and safety. The Mini Contactor you're considering offers a compelling blend of features designed to meet rigorous technical requirements.

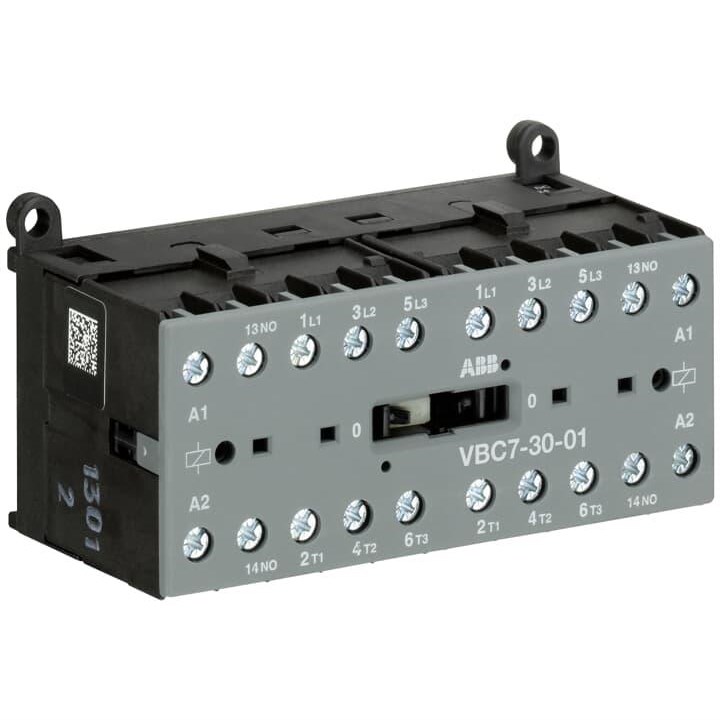

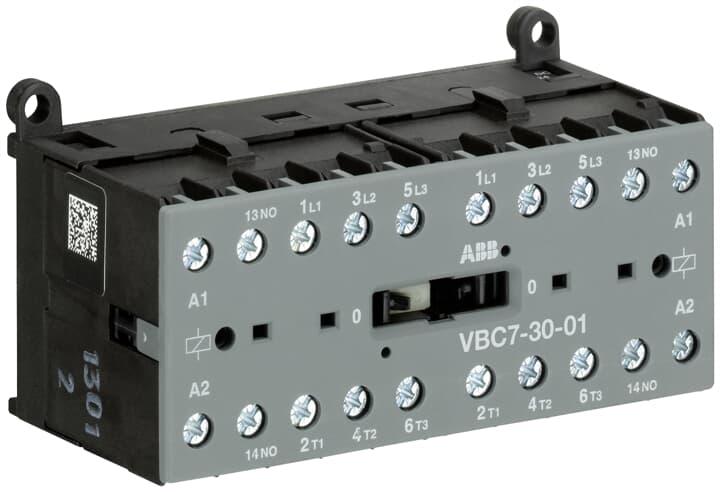

This compact yet robust device operates at a rated voltage of 24 VAC and supports a current rating of 6 A. It functions seamlessly across frequencies ranging from 50 to 60 Hz, making it versatile for various applications. With a power loss of just 2 W, this contactor is engineered for energy efficiency without compromising performance.
Safety and reliability are paramount in any electrical setup, and this mini contactor excels in both areas with its high-rated impulse withstand voltage of 6 kV and an insulation voltage rating of up to 690 V. The contact configuration includes one normally closed (1NC) and three normally open (3NO) contacts, allowing flexibility in circuit design.
Installation is straightforward thanks to its rail mounting type. This feature ensures secure placement within panels or enclosures while maintaining easy access for maintenance or adjustments. The screw terminal type further simplifies connection processes, providing reliable electrical contacts that withstand operational stresses.
The mini contactor's dimensions—96.2 mm wide, 57.5 mm high, and 46.7 mm deep—make it suitable for installations where space is at a premium without sacrificing functionality or accessibility.
Designed to operate efficiently between -20°C and +55°C, this device can handle diverse environmental conditions typical in industrial settings. Its degree of protection rated at IP20 ensures basic protection against solid objects larger than 12mm but should be considered when planning installation environments.
For compliance with industry standards, this mini contactor meets several key certifications: IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1 as well as UL standards UL 60947-1 and UL 60947-4-1 among others like IEC 60335-2-40 A2L which adds an extra layer of assurance regarding quality and safety benchmarks.
Additionally, the product boasts a rated power capacity of up to 4 kW suitable for moderate power applications involving DC actuating voltage types—a noteworthy feature if your system demands adaptable control solutions over direct current circuits.
Overall this Mini Contactor presents itself as an efficient solution tailored towards those needing dependable operation under varied conditions whilst adhering strictly towards international standardizations ensuring both peace-of-mind usage alongside optimal performance metrics throughout its lifecycle.
