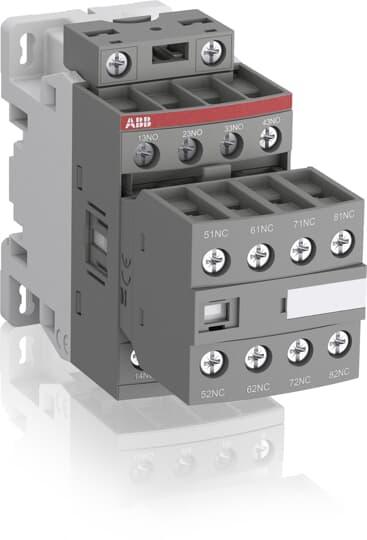

<p>When selecting a reliable component for your industrial or commercial electrical systems, understanding the specifications is crucial. This product, designed for versatility and durability, operates within a rated voltage range of 100-250 V and accommodates various current ratings: 2 A, 6 A, 4 A, and 3 A. It supports both AC and DC circuits with a frequency of 50/60 Hz.</p><p>Engineered to withstand harsh conditions, it boasts an impressive impulse withstand voltage of up to 6 kV and insulation voltage rated at 690 V. The contact configuration features an 8NO setup, ensuring robust performance in demanding applications.</p><p>Installation is straightforward thanks to its M4 screw terminal type and compatibility with a standard 35 x 15 mm mounting rail. The recommended tightening torque for auxiliary and control circuits is set at a precise 11 in-lb. For wiring ease, it offers a wire stripping length of 10 mm for both auxiliary and control circuits.</p><p>In terms of protection against environmental factors, this product has an IP20 rating—suitable for installations where dust ingress needs minimal restriction but does not require water resistance. Its operational temperature range from -40 to +70&#176;C ensures reliability across diverse climates while maintaining functionality in ambient temperatures from -60 to +80&#176;C.</p><p>Dimensions are compact yet substantial: measuring at a length of 110.5 mm, width of 45 mm, and height of 86 mm with a weight of just 0.32 kg—making it easy to handle during installation without compromising on sturdiness.</p><p>Safety standards are well-covered as it complies with IEC/EN standards (60947-1 &amp; -5-1), UL508 certification as well as CSA C22.2 No.14-13 approvals—providing peace-of-mind regarding compliance in international markets.</p><p>The air thermal current capacity stands at an impressive rating of up to16 A while also featuring rated withstand currents capable up to140 A or100 A depending on application requirements which further highlights its resilience under load conditions typical within industrial settings.</p><p>Operating times vary slightly based upon specific configurations ranging between13 ms minimum through98 ms maximum; this variability allows tailoring response characteristics according particular system demands ensuring optimal performance every time it&#39;s called into action.</p>
