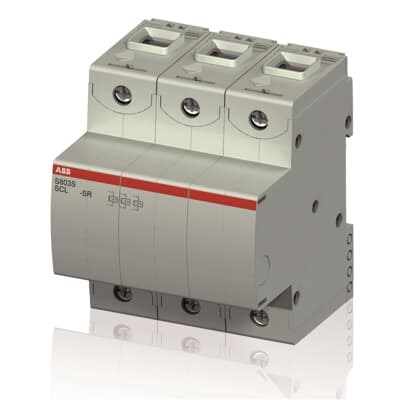

ABB S803S-SCL32 Current Limiter 3-P 400/690VAC 32A For: S800S

Product Code: S803S-SCL32

Rated for 32 A, handling significant current loads
High breaking capacity at 50 kA for safety
Operates at voltages of 400/690 VAC
Compact dimensions: W81 x H142 x D82.5 mm
Complies with IEC 60947 standards

Specifications

Product Type	Current Limiter
Brand	ABB
Breaking Capacity	50 kA
Depth	82.5 mm
Height	142 mm
Mounting Type	DIN Rail
Number of Poles	3
Power Loss	7.8 W
Rated Current	32 A
Rated Impulse Withstand Voltage	8 kV
Rated Voltage	400/690 VAC
Short Circuit Capacity	50 kA
Standards and Approvals	IEC 60947-2, IEC 60947-4-1
Suitable For Use With	S800S
Width	81 mm
